Misapplying a Variable Frequency Drive (VFD) leads to premature motor failure, nuisance tripping, and process downtime. Selecting the right drive requires moving beyond basic horsepower matching to analyze load profiles, electrical realities, and long-term support needs. Engineers and facility managers often struggle to balance upfront capital costs with long-term reliability. Specifying a drive without accounting for starting torque, environmental hazards, harmonic distortion, or input power configurations risks catastrophic system failure.
This guide provides a systematic, engineering-first framework for evaluating and specifying the correct VFD based on load characteristics—specifically addressing the distinct requirements of variable torque (pumps and fans) versus constant torque (conveyors) applications.

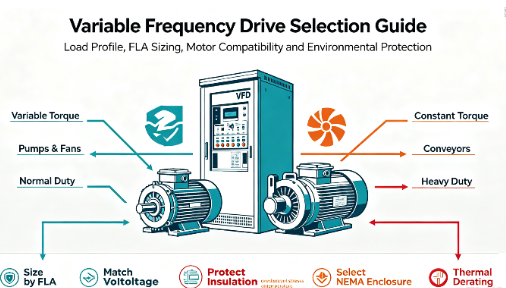

Size by FLA, Not HP: Always size a VFD based on the motor’s Full Load Amps (FLA) rather than horsepower to account for operational inefficiencies and peak current demands.
Match the Load Profile: A VFD for pumps and fans typically requires a "Normal Duty" rating (variable torque), while conveyors demand a "Heavy Duty" rating (constant torque) to handle high starting inertia.
Verify Voltage and Wiring: Always match the facility's input power to the VFD and ensure the motor's specific wiring configuration (Delta/Wye) aligns with the drive's output.
Account for the Environment: Ambient temperature, altitude, and airborne contaminants dictate the required NEMA/IP enclosure rating and thermal derating calculations.
Mitigate Electrical Risks: Factor in the cost and physical footprint of line reactors or harmonic filters to protect the motor insulation and comply with IEEE 519 power quality standards.
Table of Contents
The primary filter for selecting any drive is the mechanical load profile. You must define the critical difference between variable torque and constant torque loads before looking at any electrical specifications. Failing to identify the load type guarantees poor performance on the factory floor. A drive sized for a ventilation fan will immediately trip on an overcurrent fault if you connect it to a fully loaded conveyor belt. You must match the drive's overload capacity to the mechanical realities of the driven equipment.
Centrifugal loads such as pumps and fans follow the Affinity Laws: torque increases with the square of speed, while power increases with the cube. For example, a fan running at 50% speed requires only about 12.5% of the power needed at full speed, which explains the significant energy savings possible in HVAC and fluid systems.
Because pumps and fans require relatively low starting torque, a VFD for pumps and fans with a "Normal Duty" rating is usually sufficient. These drives typically provide 110% to 120% overload capacity for 60 seconds, giving enough power for startup without unnecessary oversizing while maintaining strong energy efficiency at reduced speeds.
Motor Speed (%) | Flow Rate (%) | Pressure/Head (%) | Power Required (%) |
|---|---|---|---|
100% | 100% | 100% | 100% |
90% | 90% | 81% | 73% |
75% | 75% | 56% | 42% |
50% | 50% | 25% | 12.5% |
The table above illustrates why variable torque applications yield massive efficiency gains. Dropping the motor speed by just 10% reduces the power draw by nearly 27%. This mechanical reality dictates that the drive only needs to handle standard running currents with minimal overload during the initial ramp-up phase.
Conveyors, extruders, and positive displacement pumps require constant torque across their speed range. Unlike pumps and fans, they often need high starting torque to overcome static friction, especially when starting under a heavy load.
These applications typically require "Heavy Duty" VFDs with 150% to 200% overload capacity for 60 seconds. This extra current helps a fully loaded conveyor start without tripping and allows equipment such as crushers or extruders to handle temporary increases in mechanical resistance.
Braking requirements are also important. Declining conveyors, hoists, and high-inertia loads can generate regenerative energy during deceleration, sending voltage back to the VFD's DC bus. External braking resistors may be required to safely dissipate this energy and prevent overvoltage faults.
Establishing the correct technical parameters ensures the drive matches the motor accurately and safely. Guesswork during this phase leads to melted insulation, blown fuses, and damaged equipment. You must read the motor nameplate carefully and align its specifications with the drive's output capabilities.
Never size a VFD by horsepower alone. Motors with the same HP rating can draw different currents depending on efficiency, power factor, and pole count. For example, a 6-pole motor may draw more current than a 2-pole motor with the same horsepower.
Instead, size the VFD according to the motor’s nameplate Full Load Amps (FLA). The drive’s continuous output current should equal or exceed the motor’s FLA. If the motor is rated at 65 amps, the VFD must provide at least 65 amps continuously. Using FLA helps prevent overload and ensures the drive can supply enough current during operation.
The facility’s power supply must match the VFD input voltage. Connecting a 460V drive to a 230V supply can cause an under-voltage fault, while connecting a 230V drive to 460V can damage internal components. Always verify the actual line voltage before selecting the drive.
The motor wiring must also match the VFD output voltage. Many industrial motors support dual voltages, such as 230/460V, using Delta or Wye wiring. Incorrect wiring can cause low torque, excessive slip, and overheating.
Single-phase input also requires special consideration when powering a three-phase motor through a VFD. The drive may need to be derated or oversized to handle the higher input current and additional thermal stress. Always follow the manufacturer’s sizing requirements for single-phase input applications.
Not all motors can handle the electrical output of a modern drive. You must evaluate the difference between standard motors and inverter-duty motors. Inverter-duty motors comply with NEMA MG1 Part 31 standards. They feature enhanced winding insulation designed to withstand the harsh electrical environment created by pulse-width modulation (PWM).

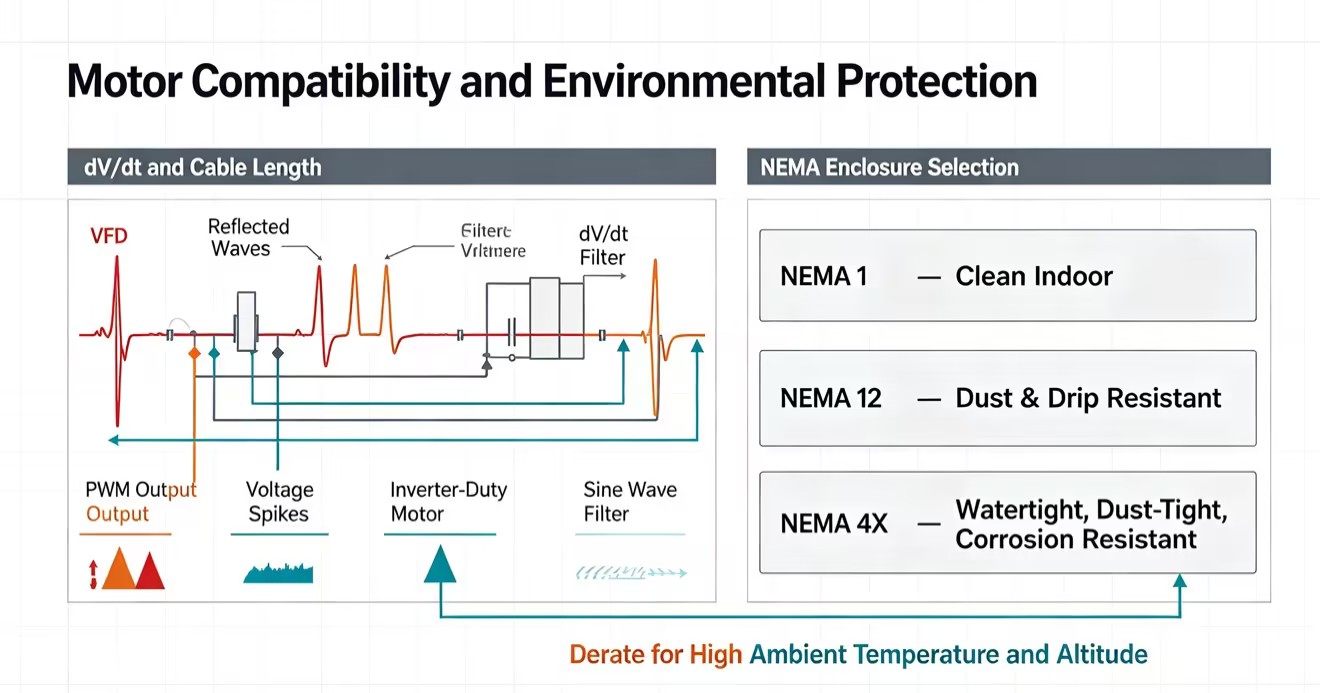

Drives create a phenomenon known as reflected waves, or dV/dt. The rapid switching of the Insulated Gate Bipolar Transistors (IGBTs) sends high-frequency voltage pulses down the motor cable. If the cable is long enough, these pulses reflect off the motor terminals and stack on top of incoming pulses. This creates voltage spikes that can exceed 1600 volts on a standard 480V system. These spikes eat away at standard motor insulation, leading to short circuits and catastrophic motor failure.
Establish strict guidelines for maximum cable lengths to protect the motor:
0 to 50 feet: Standard installation. No additional output filtering is typically required for inverter-duty motors.
51 to 150 feet: Install a 3% or 5% output load reactor at the drive terminals to dampen the voltage spikes.
151 to 300 feet: Install a dedicated dV/dt filter to slow down the voltage rise time and protect the windings.
Over 300 feet: Install a sine wave filter to convert the PWM signal back into a smooth, sinusoidal waveform.
The physical realities of the installation location dictate hardware selection just as much as the electrical requirements. Placing sensitive electronics in a harsh environment without proper protection guarantees a short lifespan. You must evaluate airborne contaminants, ambient heat, and altitude before finalizing a specification.
Enclosure ratings define how well the equipment resists dust, water, and physical ingress. Selecting the wrong enclosure leads to fouled heat sinks, short-circuited control boards, and premature drive failure.
Enclosure Type | IP Equivalent | Best Application Environment | Protection Level |
|---|---|---|---|
NEMA 1 | IP20 | Clean, climate-controlled electrical rooms. | Basic protection against accidental contact. No dust or water resistance. |
NEMA 12 | IP54 | Manufacturing floors, woodworking shops. | Blocks airborne dust, dirt, and dripping non-corrosive liquids. |
NEMA 4X | IP66 | Wastewater plants, food processing, outdoors. | Watertight, dust-tight, and highly resistant to chemical corrosion. |
If you install a NEMA 1 drive on a dusty factory floor, particulate matter will get sucked into the cooling fans. This dust acts as an insulating blanket over the internal heat sinks, causing the drive to overheat and trip. Always match the enclosure to the worst-case environmental conditions of the facility.
Heat is the primary enemy of solid-state electronics. High ambient temperatures require derating the current capacity of the unit. Most industrial drives are rated for full output at 40°C (104°F). If the ambient temperature inside the control panel exceeds this threshold, you must reduce the maximum continuous current rating according to the manufacturer's derating curve. Failing to do so will cause the unit to trip on an over-temperature fault.
Altitude also impacts cooling efficiency. Thinner air at high elevations absorbs less heat from the internal heat sinks. Altitude derating typically begins above 1,000 meters (3,300 feet). For every 100 meters above this baseline, you generally lose 1% of the drive's current capacity. If you are installing equipment in a high-altitude mining operation in the mountains, you must oversize the drive to compensate for the thin air.
Proper airflow inside control panels is non-negotiable. Follow the manufacturer's clearance requirements exactly. Leaving adequate space above, below, and beside the unit ensures the internal cooling fans can exhaust hot air effectively. Cramming too many components into a small enclosure creates dead zones where heat accumulates rapidly. If mounting multiple drives in a single cabinet, stagger them so the exhaust heat from the bottom unit does not feed directly into the intake of the top unit.
You must evaluate how the equipment will interact with the mechanical process and the wider facility control system. The control method dictates how accurately the motor follows the speed command. The communication protocols determine how easily the maintenance team can monitor performance data.
Volts per Hertz (V/Hz) control is the standard, cost-effective choice for centrifugal applications. It maintains a linear ratio between voltage and frequency. This method works perfectly for a VFD running a standard ventilation fan or a cooling tower pump. V/Hz control is simple to tune and does not require complex mathematical models of the motor. However, it struggles to produce high torque at very low speeds.
Sensorless Vector Control (SVC) is required for conveyors, extruders, and heavy loads. SVC uses an internal mathematical model to calculate the exact position of the motor rotor without needing a physical encoder. This allows the drive to separate the magnetizing current from the torque-producing current. The result is massive torque availability at low RPMs and incredibly tight speed regulation. If you need to inch a heavy conveyor belt forward smoothly without stalling, you must use SVC.
Assess your analog and digital I/O requirements for local control. You need digital inputs for start/stop commands, forward/reverse switching, and fault resets. You need analog inputs (typically 4-20mA or 0-10V) to receive speed references from pressure transducers, temperature sensors, or flow meters. Ensure the drive has enough onboard terminals to handle your specific sensor array without requiring expensive expansion cards.
Evaluate industrial network integration needs for PLC and SCADA communication. Modern facilities rely on networked data for predictive maintenance and process optimization. Specify the correct communication card upfront. EtherNet/IP is standard in North American manufacturing. Modbus TCP/RTU is common in water treatment and HVAC. PROFINET dominates European-designed machinery. Integrating the drive into the plant network allows operators to monitor motor current, fault codes, and energy consumption in real-time directly from the control room.
Engineers sometimes over-engineer simple systems. Not every motor requires variable speed control. You must provide a clear framework for when a variable frequency drive is unnecessary and a soft starter is the better choice.
Choose a soft starter when the application requires only mechanical shock reduction during startup. A soft starter uses thyristors (Silicon Controlled Rectifiers) to gradually ramp up the voltage supplied to the motor. This limits the inrush current and prevents belts from snapping, gears from stripping, or pipes from experiencing water hammer. Once the motor reaches full speed, an internal bypass contactor closes, connecting the motor directly to the line power and taking the solid-state components out of the circuit.
If the process does not require speed control during the run cycle, a soft starter is highly efficient. A pump that simply fills a holding tank at full speed and then shuts off does not need continuous speed modulation. Soft starters are smaller, generate less heat during the run cycle, and produce zero harmonic distortion on the electrical grid once bypassed. Reserve drives for applications where modulating the speed provides tangible process improvements or measurable energy savings.
Audit your motor nameplates and record the exact Full Load Amps (FLA) and voltage before looking at any drive catalogs.
Classify your mechanical load as either variable torque or constant torque to determine the required overload capacity (Normal Duty vs. Heavy Duty).
Measure the actual line voltage at the installation site and confirm the motor wiring configuration matches the drive output.
Calculate the cable distance between the drive and motor to determine if load reactors or dV/dt filters are necessary to protect the insulation.
Verify the ambient temperature, airborne contaminants, and altitude of the installation site to select the correct NEMA enclosure and apply thermal derating formulas.
A: Yes. You can supply single-phase power to a three-phase drive, which will output three-phase power to the motor. However, you must double the size of the drive relative to the motor's FLA to handle the increased thermal stress on the input rectifiers and DC bus capacitors.
A: High-inertia loads like conveyors act as generators when decelerating rapidly. This regenerative energy feeds back into the drive, raising the DC bus voltage. You need to install a dynamic braking resistor to dissipate this excess energy safely as heat.
A: While older standard motors can sometimes run on drives, it is highly risky. The PWM switching creates voltage spikes that degrade standard insulation quickly. Always use NEMA MG1 Part 31 compliant inverter-duty motors for reliable, long-term operation.
A: NEMA 1 enclosures are basic metal boxes meant for clean, indoor environments. They offer no protection against dust or water. NEMA 12 enclosures are sealed against airborne dust, dirt, and dripping non-corrosive liquids, making them suitable for factory floors.
A: Drives draw current in non-linear pulses, which creates harmonics on the power grid. You can mitigate this by installing AC line reactors or DC chokes. For stricter IEEE 519 compliance, you may need active harmonic filters or 18-pulse drives.
A: Yes, but only in V/Hz control mode. All motors will run at the exact same speed. The drive's continuous current rating must be greater than the sum of the FLA of all connected motors, plus a 10% safety margin. Each motor also requires individual overload protection.
