Two VFDs with the same horsepower rating may not be capable of handling the same load. Selecting a drive based only on motor horsepower can result in nuisance tripping, overheating, premature failure, or unnecessary equipment costs.
The difference between heavy-duty and normal-duty VFDs primarily involves current capacity, overload tolerance, torque demand, and load characteristics. Engineers must evaluate how the motor starts, accelerates, and operates under peak mechanical loads before choosing a duty rating.
In this article, you will learn how heavy-duty and normal-duty VFD ratings differ, which applications suit each option, and how to interpret dual-rated drive specifications. We will also explain how to match the VFD to the motor current and actual load profile without under-sizing or over-specifying the system.
Overload Capacity is the Differentiator: A normal duty VFD typically supports 110% to 120% overload for 60 seconds, while a heavy duty VFD supports 150% for 60 seconds (and up to 200% for 3 seconds).
Load Type Dictates the Rating: Variable torque applications (centrifugal pumps, fans) align with normal duty; constant torque applications (conveyors, extruders, hoists) require heavy duty ratings.
Dual-Rating Reality: Most modern industrial VFDs are dual-rated. A drive rated for 100 HP at normal duty will typically be rated for 75 HP at heavy duty due to the thermal limits of its internal components.
Size by Amps, Not HP: Final drive selection must always be based on the motor's Full Load Amps (FLA) and the application's peak current requirements, rather than nominal horsepower.
Table of Contents

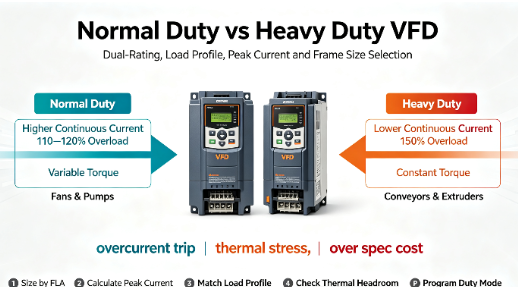

Manufacturers rarely build completely separate physical drives for normal and heavy duty applications within standard industrial power ranges. Instead, they provide two distinct rating profiles for the exact same physical inverter. The limitation of any VFD is heat. The insulated-gate bipolar transistors (IGBTs) inside the drive generate significant thermal energy during the high-frequency switching process used to create the simulated AC output waveform. A dual-rated drive simply offers two different ways to manage that internal thermal capacity. You can either run a higher continuous current with very little room for overload spikes, or you can run a lower continuous current to leave a large thermal buffer for massive, sudden current spikes. The physical heat sinks, cooling fans, and DC bus capacitors remain identical; the difference lies entirely in how the drive's firmware manages the current throughput.
A normal duty VFD rating allows the drive to operate at its maximum continuous output current with a standard overload threshold of 110% to 120% for 60 seconds. The thermal assumptions here are straightforward. The drive is designed for applications where the mechanical load remains steady and rarely exceeds the continuous rating. Lower starting torque needs are standard. Because the drive does not need to reserve massive heat-dissipation capacity for sudden 150% current spikes, it can push a higher baseline current continuously. This maximizes the horsepower you can drive from a specific physical frame size. In field applications like commercial HVAC systems or municipal water pumping stations, this rating provides highly efficient motor control without requiring oversized electrical enclosures.
The heavy duty specification drops the continuous current rating of the drive to increase the overload threshold. A heavy duty rating typically guarantees 150% of the continuous output current for 60 seconds, with short 3-second peaks reaching up to 200%. The thermal assumptions change drastically in this mode. The drive is engineered to handle frequent, high-current spikes without overheating the IGBTs or triggering a protective fault. By lowering the baseline continuous current, the drive maintains the thermal headroom necessary to absorb the massive heat generated during hard starts, sudden mechanical jams, or rapid deceleration events. Industrial environments utilizing overhead cranes, positive displacement pumps, or large aggregate conveyors rely on this thermal buffer to keep production moving during mechanical stress events.
Selecting the right drive out of the box is only the first step. Engineers must explicitly program the VFD parameters upon installation to tell the drive whether it is operating in normal or heavy duty mode. The drive hardware cannot automatically detect the mechanical load profile. During commissioning, you must enter the motor data and select the duty cycle parameter. This step ensures the drive's microprocessor sets the correct internal current limits, thermal time constants, and fault thresholds. Failing to parameterize a dual-rated drive correctly often leaves it in its factory default state. If the default is normal duty and you connect it to a heavy duty load, the drive will experience immediate nuisance tripping on the first loaded startup because the internal software limits will clamp down on the required starting current.

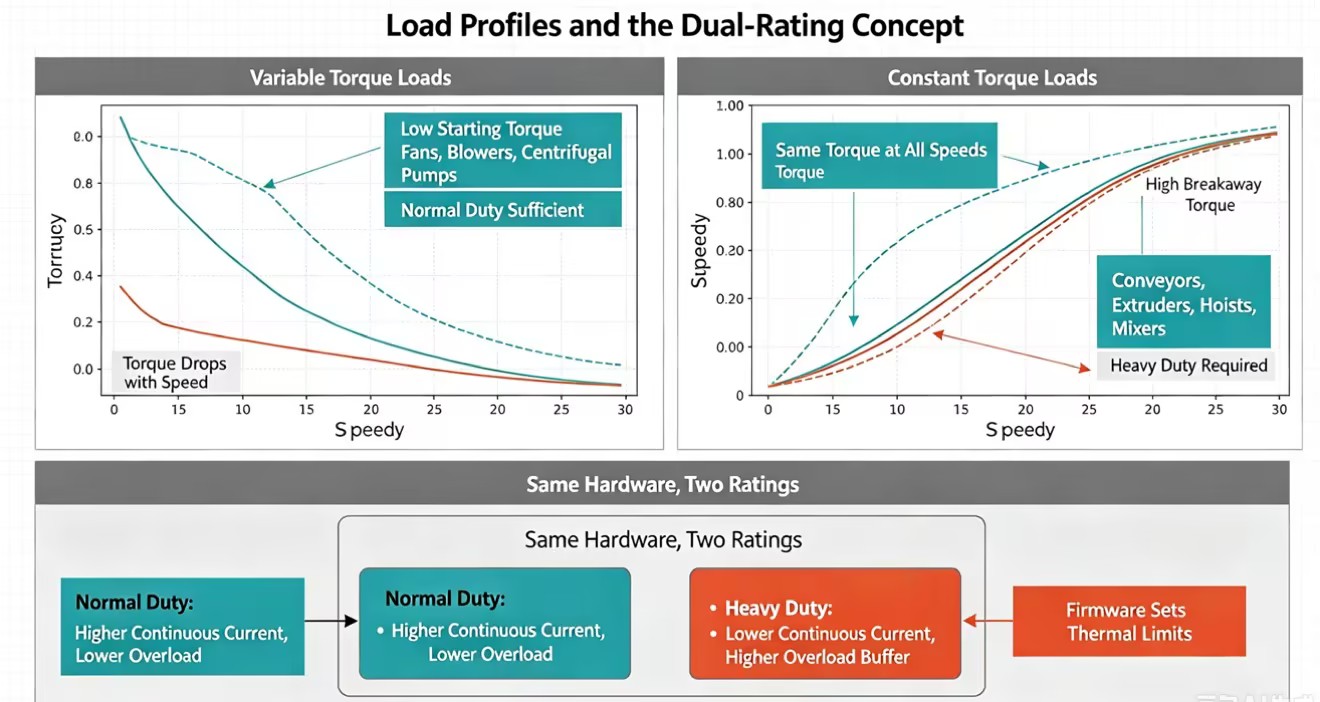

Variable torque loads exhibit a specific mechanical behavior: the torque required to spin the load decreases significantly as the motor speed decreases. Centrifugal fans, centrifugal pumps, and blowers are the most common examples. These applications follow the affinity laws, where horsepower required drops by the cube of the speed reduction. A normal duty rating is entirely sufficient here. These loads require minimal starting torque because they start unloaded. A centrifugal pump pushes very little water at 10% speed, meaning the motor draws very little current during the initial ramp-up phase. Furthermore, these applications rarely experience sudden mechanical binding or dynamic load spikes during steady-state operation. The current draw remains highly predictable, allowing the drive to operate near its maximum continuous thermal limit safely.
Constant torque loads require the exact same amount of torque regardless of the motor's operating speed. Conveyors, positive displacement pumps, extruders, and industrial mixers fall into this category. Pushing a fully loaded aggregate conveyor requires massive force at 5 Hz, just as it does at 60 Hz. These applications demand heavy duty ratings. They require exceptionally high breakaway torque to overcome static friction (stiction) at startup. Additionally, they are subject to dynamic load changes. An extruder might suddenly ingest a denser batch of raw material, causing an immediate spike in required torque and, consequently, a massive spike in current draw. The drive must have the 150% overload capacity ready to push through that dense material without tripping offline.
Engineering always contains nuances. Regardless of the theoretical torque-speed characteristic of the load, you must look at the absolute maximum short-term overtorque required by the specific application. If a constant torque application is mechanically designed so that it will never require more than a 10% short-term overtorque spike, a normal duty rating can technically suffice. For example, a lightly loaded, perfectly horizontal inspection conveyor might technically be a constant torque load, but it never experiences sudden jams or heavy startup demands. In this strict edge case, the 110% overload capacity of a normal duty rating handles the job perfectly. However, this requires absolute certainty about the mechanical limits of the machine; if operators ever overload that conveyor, the drive will trip.
Specialized industrial applications like rock crushers, punch presses, and large centrifuges introduce extreme mechanical dynamics. These machines feature massive rotational inertia. Starting them requires sustained, high-current output to get the heavy mass moving. Stopping them generates massive regenerative power spikes as the kinetic energy flows back into the drive. Heavy duty ratings are non-negotiable here. The drive must handle the massive kinetic energy transfer and the severe impact loads when a crusher bites into a rock or a press strikes metal. The 150% to 200% overload buffer prevents the drive's internal DC bus from tripping during these violent mechanical events. In many of these applications, engineers must also pair the heavy duty drive with external dynamic braking resistors to bleed off the excess regenerative voltage.

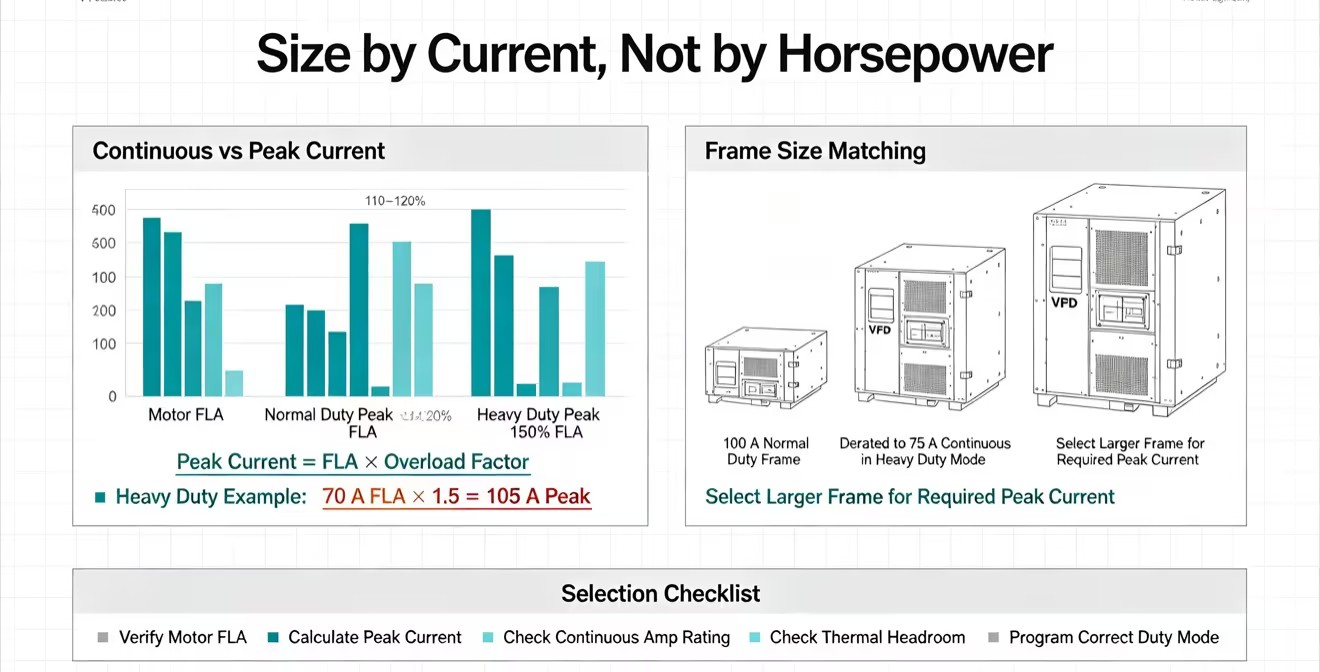

Drive sizing must abandon horsepower and focus entirely on amperage. You must evaluate the motor's nameplate Full Load Amps (FLA) against the VFD's continuous amp rating, but more importantly, you must calculate the absolute peak current. Multiply the motor's FLA by the required overload percentage. For a heavy duty application, multiply the FLA by 1.5. The resulting peak amperage must fall within the VFD's maximum overload rating. This mathematical check ensures the VFD's IGBTs can survive the application's worst-case scenario without exceeding their thermal limits. Relying on horsepower alone ignores the varying efficiency and power factor of different motors, which can lead to undersized drives and continuous overcurrent faults.
Evaluation Criteria | Normal Duty VFD | Heavy Duty VFD |
|---|---|---|
Overload Capacity | 110% - 120% for 60 seconds | 150% for 60 seconds (200% for 3s) |
Load Characteristic | Variable Torque | Constant Torque / High Inertia |
Starting Torque | Low (Starts unloaded) | High (Requires high breakaway force) |
Typical Applications | Centrifugal pumps, fans, blowers | Conveyors, extruders, hoists, mixers |
Thermal Headroom | Minimal (Optimized for continuous flow) | Maximum (Optimized for heat spikes) |
Hardware Sizing | Matches motor HP directly | Often requires one frame size larger |
When engineers utilize the heavy duty rating of a dual-rated drive, the driven load is effectively one "size" smaller than the drive's maximum normal duty capacity. For instance, a drive physically capable of pushing 100 amps continuously in normal duty mode might be derated to 75 amps continuously in heavy duty mode. If your motor draws 70 amps FLA, you must buy the 100-amp frame size to get the heavy duty rating. The motor's full load current sits well below the VFD's maximum physical continuous capacity. This intentional mismatch leaves the necessary room for the 150% overload spikes without melting the silicon inside the drive. Understanding this derating curve prevents engineers from accidentally buying a drive that is too small for the required overload.
Breakaway torque dictates how much current the drive must push at very low frequencies (0-10 Hz) to overcome static friction. Normal duty profiles limit this low-speed current push to protect the drive, assuming the load is a fan or pump that spins freely at low speeds. Heavy duty ratings allow the drive to push massive amounts of current at near-zero speeds. If you are lifting a load with a hoist or starting a fully loaded inclined conveyor, the drive must generate 150% or more of nominal torque instantly. Only a heavy duty rating provides the current allowances at low frequencies to achieve this without stalling the motor or tripping the drive on an instantaneous overcurrent fault.
The carrier frequency (or switching frequency) determines how fast the drive's IGBTs turn on and off to simulate the AC sine wave. Increasing the carrier frequency reduces audible motor whine, which is often required in HVAC or commercial environments. However, faster switching generates exponentially more heat inside the drive. High carrier frequencies force aggressive thermal derating. An engineer may be forced to select a heavy duty rating just to maintain normal duty performance levels because the increased heat from the high carrier frequency consumes the drive's thermal headroom. Always check the manufacturer's derating curves if you plan to increase the switching frequency above default levels, as a drive rated for 100 amps at 4 kHz might only be rated for 60 amps at 12 kHz.
Using a normal duty rating for a heavy duty load is a guaranteed path to operational failure. The most immediate risk is frequent overcurrent faults, commonly known as nuisance tripping. Every time the conveyor binds or the mixer hits a thick batch, the drive detects a current spike exceeding its 110% limit and shuts down to protect itself. This stalls production lines. Beyond immediate downtime, pushing a drive to its thermal limits repeatedly causes accelerated degradation of drive capacitors and IGBTs. The heat bakes the internal components, drastically shortening the lifespan of the hardware. The hidden costs of lost production hours, ruined batches, and emergency maintenance vastly outweigh the initial capital savings of buying a smaller drive frame.
Conversely, using a heavy duty rating for a strictly normal duty load introduces unnecessary financial and physical burdens. The primary risk is wasted capital expenditure. Buying a 100 HP heavy duty drive for a 100 HP centrifugal fan means you are paying for a larger physical frame size, larger heat sinks, and higher-rated internal components that the fan will never utilize. Furthermore, larger drive frames require larger physical footprints. This leads to oversized, more expensive control panels and increases the overall cooling requirements for the electrical room or enclosure. Precision sizing prevents this waste, keeping panel dimensions manageable and reducing the required BTU rating for enclosure air conditioners.
The physical environment directly impacts a drive's ability to shed heat, which alters the heavy duty vs normal duty calculation. High ambient temperatures, high altitudes (thinner air transfers less heat), and sealed enclosure types (like NEMA 4X without active cooling) severely reduce the drive's cooling efficiency. Most drives are rated for 40°C ambient operation. If the electrical room hits 50°C, the drive loses thermal capacity. The standard rule of thumb applies: if environmental derating pushes a normal duty VFD near its thermal limit, you must step up to the next frame size. Effectively, you are utilizing the heavy duty hardware capacity just to survive the harsh environment while pushing a normal duty load. Always calculate environmental derating before finalizing the drive size.
The choice between a heavy duty vs normal duty VFD is not a matter of hardware quality. It is a strict mathematical alignment between the drive's internal thermal capacity, the mechanical load's torque profile, and the required overload percentage. Misalignment leads directly to hardware failure or wasted capital. By focusing on amperage rather than horsepower, engineers can match the drive's thermal limits to the physical realities of the driven machine.
Execute the following steps to finalize your drive selection:
Audit the mechanical equipment to determine if it operates with variable torque or constant torque.
Calculate the absolute peak current by multiplying the motor's Full Load Amps (FLA) by the required overload percentage.
Review the installation environment for high ambient temperatures or altitudes that require thermal derating.
Select a drive frame size where the continuous and peak current ratings exceed your calculated requirements.
Program the correct duty cycle parameter into the drive firmware during initial commissioning.
A: Generally, no. Conveyors are constant torque loads that require high starting torque to overcome static friction. They also experience sudden load changes when material is dropped onto the belt. These mechanical realities necessitate the 150% overload capacity of a heavy duty rating to prevent nuisance tripping during operation.
A: VFDs are limited by heat. The drive can supply a higher continuous current (higher HP) if the overload spikes are small (normal duty). However, it must be derated to a lower continuous current (lower HP) to leave the necessary thermal headroom to survive large 150% overload spikes (heavy duty).
A: The drive will detect an overcurrent condition that exceeds its thermal time constant. To prevent the internal IGBTs from melting, the drive's microprocessor will execute a protective fault. This immediately shuts down the motor and halts your production line to protect the hardware.
A: Review the mechanical characteristics of the driven equipment. If the machine starts under a heavy load, handles highly viscous materials, processes varying aggregate sizes, or experiences sudden mechanical jams, 150% overload capacity is standard engineering practice to maintain reliable operation.
A: No. The actual power consumed is dictated entirely by the motor and the mechanical load, not the drive's rating. A heavy duty drive simply utilizes larger internal components to handle higher current throughput safely. It will only draw the power the load demands.
