Single-Phase vs Three-Phase VFD: How to Choose the Right Power Configuration

Facility power constraints rarely align perfectly with ideal motor control requirements, forcing engineers and facility managers to navigate complex power configuration trade-offs. Specifying the wrong phase configuration for a Variable Frequency Drive (VFD) results in premature drive failure, nuisance tripping, motor overheating, or unnecessary capital expenditure on facility power upgrades. Resolving the single phase vs three phase VFD dilemma requires a strict evaluation of input power availability, motor nameplate data, and the technical realities of phase conversion. This guide provides an evidence-based framework for specifying the correct drive architecture without over-engineering or under-sizing the system.

• Input vs. Output Distinction: The decision hinges on matching the facility's available power (input) to the motor's design (output). VFDs can bridge the gap between single-phase sources and three-phase motors, but rarely the reverse.

• The Derating Reality: Using a Three-Phase VFD on a single-phase power supply requires significant derating—typically oversizing the drive by 50% to handle the increased input current and DC bus ripple.

• Application Scale: Single-phase input drives are strictly limited to low-power, small-scale applications (typically under 3 HP like residential well pumps or small HVAC units), while three-phase systems are mandatory for high-torque, industrial-scale processes.

• Cost vs. Footprint: Phase conversion via VFD is highly cost-effective compared to utility upgrades, but requires a larger physical enclosure and strict thermal management.

How VFD Input and Output Phases Work

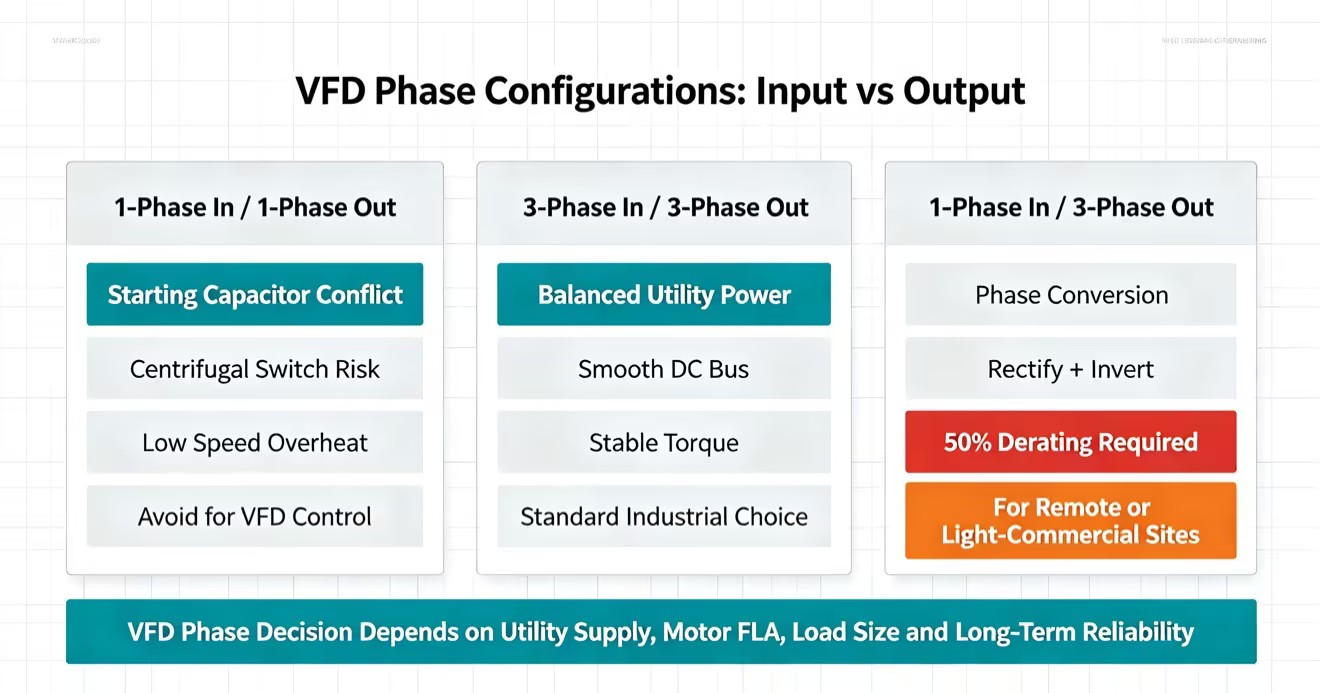

When selecting a drive, the term "phase" refers to two distinct electrical stages. You must evaluate the utility supply entering the drive (input) and the power leaving the drive to run the motor (output). Confusing these two stages leads to immediate equipment failure. A drive acts as a power converter, operating within strict physical limitations based on its internal circuitry. We evaluate three primary configurations in the field.

Single-Phase Input and Single-Phase Output

This configuration presents severe mechanical limitations. Automation professionals generally avoid controlling single-phase motors with VFDs. Single-phase motors typically rely on starting capacitors and centrifugal switches to initiate rotation. When a VFD alters the frequency to slow the motor down, the centrifugal switch drops back into its resting position. This action reconnects the starting capacitor while the motor is running, causing immediate electrical damage to the capacitor and the drive's inverter section. Operating these motors at low speeds also causes rapid overheating because the internal cooling fan loses velocity. Most manufacturers refuse to produce VFDs for single-phase output applications due to these inherent mechanical conflicts.

Three-Phase Input and Three-Phase Output

This setup represents the baseline standard for industrial motor control. A standard Three-Phase VFD receives balanced power from the utility grid. The three alternating currents overlap perfectly, meaning the voltage never drops to zero. This overlap creates a consistently smooth DC bus voltage inside the drive. The drive then inverts this smooth DC power back into a precise three-phase output. Motors running on this configuration deliver optimal torque, run cooler, and experience minimal mechanical vibration. Facilities operating heavy machinery rely entirely on this balanced power architecture to maintain production uptime.

Single-Phase Input and Three-Phase Output

This configuration solves a specific engineering challenge. It allows operators to run industrial three-phase motors in facilities lacking three-phase utility drops. You will find this setup frequently in agricultural buildings, residential workshops, and light-commercial spaces. The drive takes the single-phase utility power, rectifies it, and synthesizes a three-phase output. While highly useful, this phase conversion process places heavy stress on the drive's internal components. It requires careful sizing and specific installation protocols to function reliably over a long operational lifespan.

How to Choose the Right VFD Phase Configuration

Selecting the correct drive architecture requires analyzing your physical infrastructure and mechanical load. You cannot base this decision on preference. It relies entirely on electrical availability and motor requirements. We use a strict set of criteria to determine the correct path forward.

Facility Power Availability and Infrastructure Costs

You must first assess the hard costs of your utility infrastructure. Pulling new three-phase utility lines to a remote facility often costs tens of thousands of dollars. Utility companies charge heavily for new transformers, poles, and trenching. In these scenarios, utilizing existing single-phase lines makes financial sense. However, standard single-phase facility panels have strict maximum amperage limits. A typical residential or light-commercial panel maxes out at 200 or 400 amps. Running large industrial motors on single-phase power draws massive current, quickly consuming the panel's available capacity. You must calculate the total facility load before adding a large phase-converting drive.

To evaluate your facility power, follow these steps:

1. Locate the main breaker in your facility panel to determine total available amperage.

2. Calculate the continuous draw of all existing lighting, HVAC, and auxiliary equipment.

3. Subtract the existing draw from the total available amperage to find your usable capacity.

4. Compare the usable capacity against the calculated single-phase input draw of your proposed VFD.

Motor Horsepower and Load Requirements

Motor horsepower dictates your hardware options. Manufacturers design dedicated single-phase input drives specifically for small loads. These dedicated drives typically max out around 3 HP (approximately 2.2 kW). If your motor is 3 HP or smaller, you can purchase a drive explicitly rated for single-phase input without complex math. Low-power applications like hobbyist CNC machines, small exhaust fans, and residential well pumps fit perfectly here.

High-power rating processes demand a different approach. Heavy extruders, large material conveyors, and industrial mixers require massive starting torque. Once you exceed the 3 HP threshold, you must utilize a standard three-phase drive and adapt it for single-phase input. This transition requires strict adherence to derating principles to prevent hardware failure. A 10 HP lathe, for example, cannot run on a dedicated single-phase drive. It requires a derated three-phase unit.

Torque Stability and Motor Vibration

The mechanical output of your motor depends heavily on the input power quality. Three-phase power delivers continuous, overlapping power pulses. The voltage never drops to zero across all three phases simultaneously. This continuous power delivery results in stable, smooth motor rotation. It provides maximum torque across the entire speed range, which is mandatory for precision machining and heavy lifting.

Single-phase power inherently pulses at zero-crossings. The voltage drops to zero 120 times per second in a standard 60Hz system. When a drive attempts to convert this pulsing power into three-phase output, the internal DC bus voltage fluctuates. This fluctuation is called DC bus ripple. If the drive is not sized correctly, this ripple passes through to the motor. It increases motor vibration, degrades torque stability, and accelerates mechanical wear on bearings. Equipment requiring high precision heavily favors true three-phase utility power to eliminate these mechanical vibrations.

How to Run a Three-Phase Motor on Single-Phase Power

Operating a three-phase motor on a single-phase utility supply is the most common phase configuration challenge in the field. Understanding how the drive processes this power ensures system longevity and prevents unexpected downtime.

How VFDs Act as Phase Converters

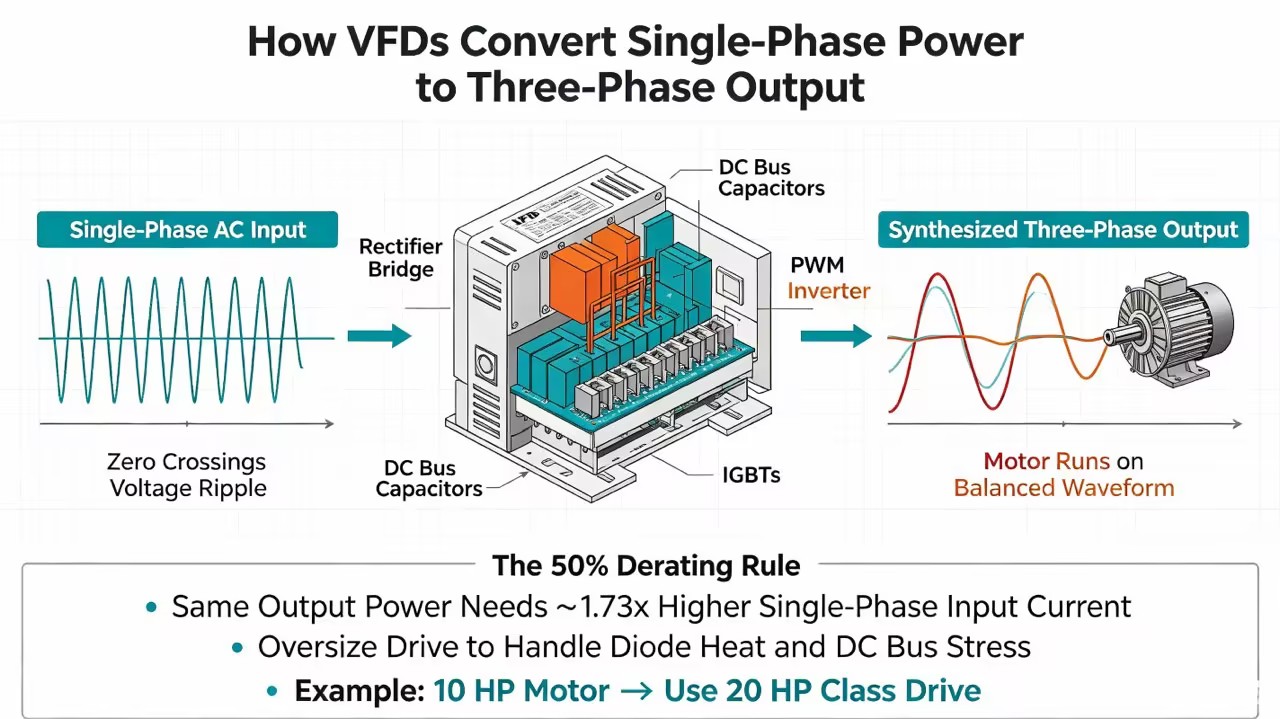

A variable frequency drive does not magically change one phase into three. It rebuilds the power entirely from scratch. First, the drive's rectifier bridge uses diodes to convert the incoming single-phase AC power into raw DC power. Next, large internal capacitors filter and smooth this raw DC power, storing it on the DC bus. Finally, the inverter section uses Insulated-Gate Bipolar Transistors (IGBTs) to chop the DC power into rapid pulses. This Pulse Width Modulation (PWM) synthesizes a new three-phase AC waveform. The motor reads this synthesized waveform as standard three-phase power. The drive effectively isolates the motor from the single-phase utility supply, acting as a buffer and a converter simultaneously.

The 50% Derating Rule

Phase conversion comes with a severe mathematical reality. A single-phase input draws approximately 1.73 times more current than a three-phase input to produce the same output power. When you apply single-phase power to a drive designed for three-phase input, all that current forces its way through only four diodes instead of six. This creates massive heat concentration on a specific section of the rectifier bridge.

To protect the rectifier bridge and the DC bus capacitors, you must oversize the drive. This is known as derating. The industry standard rule requires a 50% derating factor. If you need to run a 10 HP three-phase motor on single-phase power, you must purchase a 20 HP drive. The larger drive contains heavier diodes and larger capacitors capable of handling the concentrated single-phase current. Failing to derate the drive guarantees rapid component failure, usually resulting in a blown rectifier or ruptured capacitors within the first few hours of operation.

Cost and Space Trade-Offs of Oversizing Drives

Oversizing a drive impacts both your budget and your physical control panel. Buying a 20 HP drive to run a 10 HP motor increases your initial hardware cost. However, this cost remains significantly lower than paying the utility company to install three-phase power lines. You trade a small hardware premium for massive infrastructure savings.

The physical footprint presents a greater challenge. A 20 HP drive is substantially larger than a 10 HP drive. It requires a larger electrical enclosure. The oversized drive also generates more heat, requiring aggressive thermal management. You must account for these physical dimensions when designing your control panel layout. Trying to cram an oversized drive into an undersized cabinet leads to thermal faults and erratic behavior.

How to Size and Set Up a VFD for Phase Conversion

Implementing a phase conversion system requires precision. Guesswork during sizing, wiring, or programming will result in immediate faults or safety hazards. We follow a strict protocol for every installation.

Accurate Drive Sizing Methodology

Never size a phase-converting drive based purely on horsepower. Horsepower is a mechanical rating, but VFDs are electrical devices. You must calculate the required amperage. Follow these steps for accurate sizing:

1. Locate the motor nameplate and identify the Full Load Amps (FLA) for your specific operating voltage.

2. Multiply the motor's FLA by the single-phase derating factor. Most manufacturers recommend a multiplier of 1.73 to 2.0. Check the specific drive manual for their exact multiplier.

3. Select a drive that has a continuous output amperage rating equal to or greater than your calculated number.

4. Verify that the drive's input terminals can physically accept the larger wire gauge required for the higher single-phase input current.

For example, if a 230V motor has an FLA of 14 amps, multiplying by 2.0 gives you 28 amps. You must select a VFD rated for at least 28 amps of continuous output current, regardless of its horsepower label.

Single-Phase Input Wiring

Wiring a three-phase drive for single-phase input requires specific terminal connections. You will bring two hot wires and a ground from your single-phase utility supply. Connect these input wires to the drive's input terminals. Most manufacturers specify using terminals L1 and L2. Some specify L1 and L3. You must consult the manufacturer's manual for the exact terminal designation. Leaving one input terminal empty is expected and normal in this configuration.

The output wiring remains standard. You must connect all three output terminals (T1, T2, and T3) directly to the three-phase motor. Never connect single-phase power to the output terminals, as this will instantly destroy the IGBTs. Ensure all grounding connections are secure to prevent electrical noise and safety hazards. Use shielded motor cable between the drive and the motor to contain high-frequency noise generated by the PWM switching.

Required VFD Settings

Once wired, the drive will likely refuse to run until you adjust the parameters. Modern drives feature built-in protection circuits. When you supply single-phase power to a three-phase drive, the internal sensors detect that one input terminal is dead. The drive interprets this as a dangerous power failure and triggers an "Input Phase-Loss Fault."

You must access the VFD's parameter menu and manually disable this specific fault protection. Without this adjustment, the drive will experience nuisance tripping immediately upon power-up. Additionally, you should verify that the motor nameplate data is accurately entered into the drive's parameters. You must input the exact motor voltage, base frequency, full load amps, and RPM to ensure proper V/Hz curve generation and accurate motor overload protection.

Performance, Heat, and Maintenance Considerations

Running derated drives impacts the broader electrical environment of your facility. You must manage harmonics, heat, and component stress proactively to maintain a stable electrical grid.

Harmonic Distortion

When a drive rectifies single-phase power, it draws current from the utility in sharp, non-linear gulps rather than a smooth sine wave. This process generates significant Total Harmonic Distortion (THD). Heavily loaded single-phase rectifiers push these harmonics back into the facility's electrical grid. High THD causes lights to flicker, overheats facility transformers, and disrupts sensitive electronics like PLCs and computers.

To mitigate utility-side harmonics in phase-conversion setups, you must install filtering components. Adding an AC line reactor or a DC choke smooths the current draw. A 3% or 5% line reactor installed ahead of the drive significantly reduces harmonic distortion. It protects both the utility grid from the drive's noise and the drive's internal circuitry from external voltage spikes caused by utility grid switching.

VFD Cooling and Enclosure Size

Heat is the primary enemy of electrical components. Pushing concentrated single-phase current through a rectifier designed for distributed three-phase power generates excessive thermal loads. The diodes work twice as hard, and the heat sinks absorb massive thermal energy. You cannot ignore enclosure cooling in these applications.

You must calculate the required cooling capacity for your electrical enclosure. If you use a vented NEMA 1 enclosure, ensure adequate ambient airflow and keep the cabinet away from direct sunlight or heat-producing machinery. If your environment requires a sealed NEMA 4X enclosure to protect against dust or water, thermal management becomes critical. Sealed enclosures trap heat. You will likely need to install active cooling systems, such as enclosure air conditioners, or significantly oversize the metal cabinet to allow for passive heat dissipation through the enclosure walls.

Maintenance and VFD Lifespan

The lifespan of a drive depends heavily on the health of its DC bus capacitors. In a single-phase input application, the DC bus experiences severe voltage ripple. The capacitors must constantly charge and discharge to smooth this ripple. This continuous cycling generates internal heat within the electrolytic capacitors, degrading them faster than normal.

Adequately derating the drive mitigates this issue by providing larger capacitors capable of handling the stress. However, you should expect a slightly shorter operational lifespan for drives used in phase-conversion applications compared to drives running on pure three-phase utility power. Routine maintenance should include thermal imaging of the drive under load to detect failing capacitors early. You should also inspect the cooling fans annually, as a failed fan on a derated drive will cause a rapid thermal shutdown.

Common Risks of VFD Phase Conversion

Deploying non-standard power configurations carries inherent risks. You must protect your equipment investments and know exactly when to transition to standard utility power.

Warranty Risks

Manufacturers enforce strict warranty policies regarding phase conversion. If you ignore the manufacturer's published derating charts, you instantly void the OEM warranty. If a drive fails and the manufacturer determines it was undersized for a single-phase input application, they will not replace it. Always document your sizing calculations and keep them in the panel. Advise your procurement team to select drives explicitly rated by the manufacturer for single-phase input without derating, where available. Several manufacturers now produce dedicated single-phase input drives for higher horsepower ratings, eliminating the need for manual derating math and preserving the full warranty.

When to Upgrade Facility Power vs. Using a VFD

Phase conversion is not a permanent solution for expanding industrial facilities. You must perform a break-even analysis. Calculate the total cost of purchasing multiple oversized drives, larger enclosures, line reactors, and cooling systems. Compare this total against the quote from your utility company for a three-phase service drop.

If you operate a single 10 HP machine in a remote barn, the VFD is the clear choice. If you are building a production floor with ten different 15 HP motors, the cost of oversized drives and harmonic mitigation will quickly exceed the cost of the utility upgrade. Transition to true three-phase utility power when facility-wide motor loads scale beyond isolated applications. Relying on dozens of derated drives creates a fragile electrical ecosystem prone to harmonic issues and high maintenance overhead.

Conclusion

• Audit your motor nameplate immediately to confirm the exact Voltage and Full Load Amps (FLA).

• Calculate your derated amperage requirement by multiplying the motor FLA by 2.0 before selecting a drive frame size.

• Measure your available panel space to ensure the oversized drive and necessary line reactors will physically fit.

• Access the parameter menu during commissioning to disable the Input Phase-Loss Fault to prevent nuisance tripping.

• Consult with an application engineer to verify your enclosure cooling calculations and harmonic mitigation strategy.

FAQ

Q: Can a VFD convert single-phase power to three-phase?

A: Yes. The drive rectifies the incoming single-phase AC power into DC power. It then uses internal transistors to invert that DC power into a synthesized three-phase AC output to run the motor safely.

Q: Do I need to derate a Three-Phase VFD for single-phase input?

A: Yes, typically by 50%. A drive must be oversized to handle the higher input current and increased DC bus ripple caused by single-phase power. Without derating, the internal diodes and capacitors will fail.

Q: Why are single-phase output VFDs rarely used?

A: Single-phase motors usually contain starting capacitors and centrifugal switches. Altering the frequency with a drive can cause these mechanical switches to re-engage at the wrong speeds, leading to severe motor damage.

Q: What happens if I forget to disable the phase-loss fault?

A: The drive will immediately trigger a fault code and refuse to run. It detects that one of the input terminals has no voltage and assumes a dangerous power failure has occurred.

Q: Do I need a line reactor for a single-phase input VFD?

A: It is highly recommended. Single-phase rectification creates significant harmonic distortion. A line reactor smooths the current draw, protects the drive from voltage spikes, and prevents harmonic noise from disrupting your facility's power grid.

Q: How does single-phase input affect VFD lifespan?

A: It increases stress on the rectifier diodes and DC bus capacitors due to higher current and voltage ripple. Properly derating the drive mitigates this stress, but extreme heat can still shorten component lifespan if ventilation is poor.
