The lowest-priced VFD is not always the most economical choice. A drive that is incorrectly sized or poorly matched to the motor can increase energy consumption, create harmonic issues, damage equipment, and generate unexpected maintenance costs.
The total variable frequency drive cost includes more than the purchase price. Power rating, voltage, control functions, enclosure type, installation, programming, cooling, harmonic mitigation, and ongoing maintenance can all affect the final investment.
In this article, you will learn which factors influence VFD pricing, what hidden implementation costs to consider, and how to estimate potential energy savings and return on investment. We will also explain how to compare different VFD options and select the right solution without paying for unnecessary features.
Base Price Variance: Upfront costs range drastically from fractional horsepower micro-drives to high-capacity, custom-engineered industrial units.
Specification Drives Price: Horsepower/Kilowatt ratings are the baseline, but enclosure ratings (NEMA/IP), harmonic mitigation, and specific control methods heavily dictate final hardware costs.
Hidden Implementation Costs: Installation, specialized cabling, line reactors, and cooling modifications frequently equal or exceed the cost of the drive itself.
Rapid Payback Period: For variable torque applications (pumps and fans), energy savings typically yield a return on investment (ROI) within 6 to 24 months, offsetting the initial variable frequency drive cost.
Table of Contents

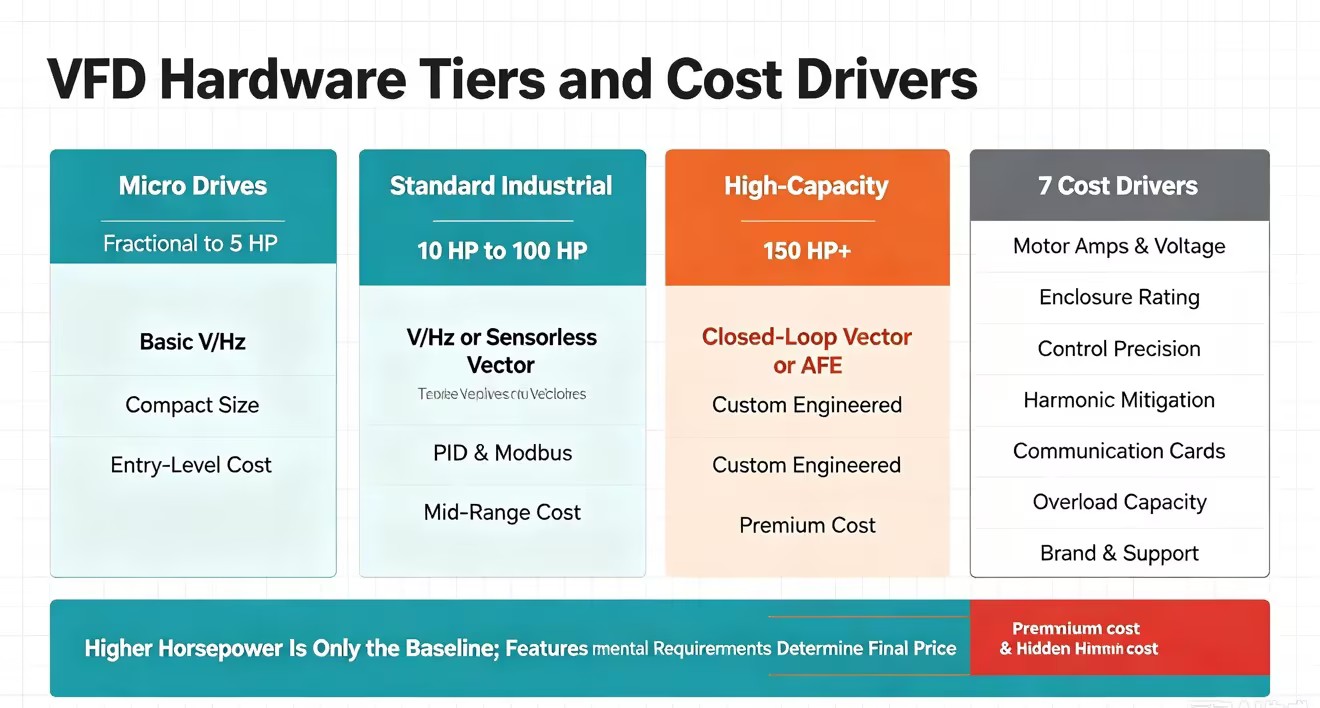

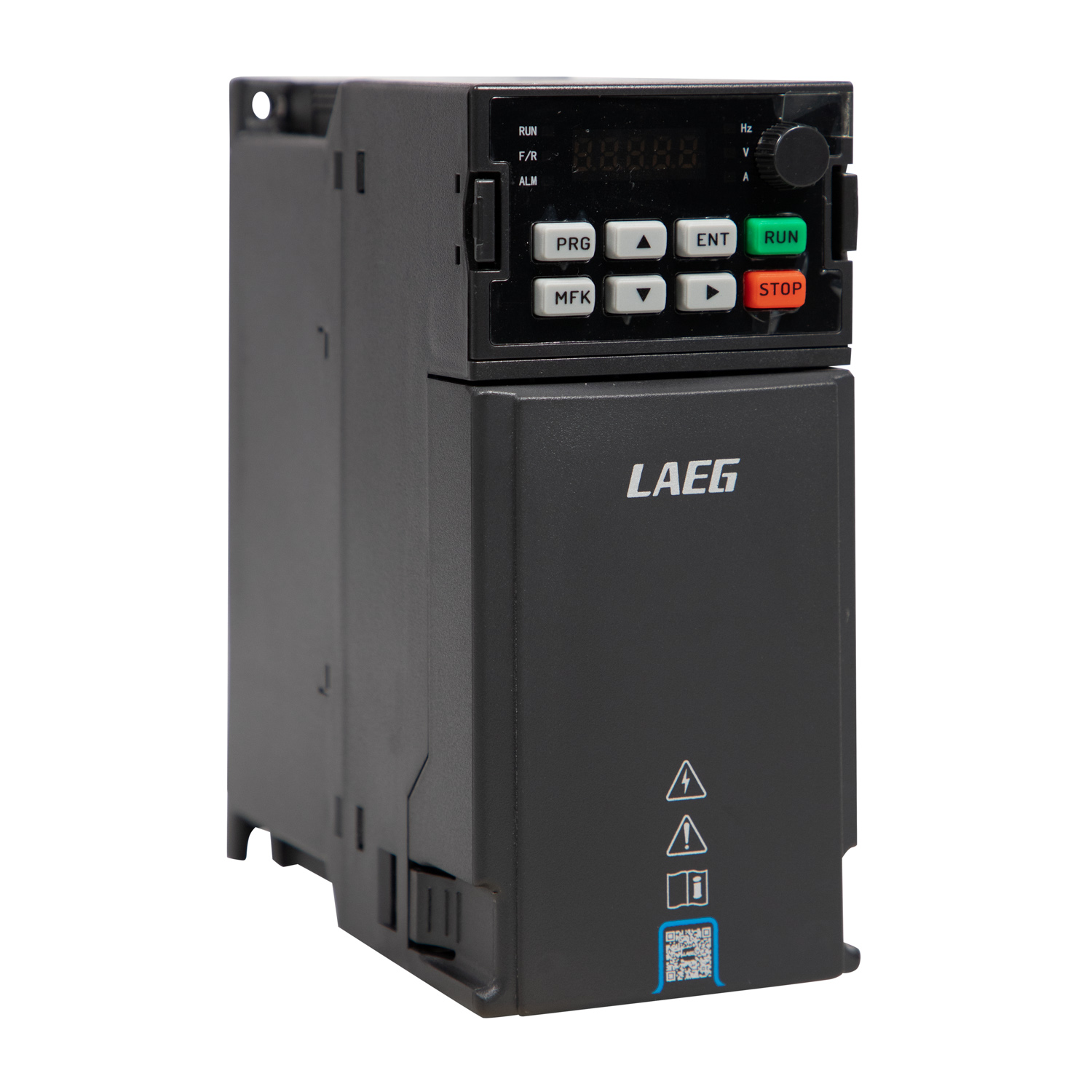

Procurement teams often struggle to budget for motor controls. Manufacturer hardware tiers vary wildly based on application scale and power requirements. Understanding the basic categories helps establish a realistic baseline for your project without relying on arbitrary estimates. Hardware falls into three primary classifications based on power output and internal component complexity.
Micro drives represent the entry-level tier of motor control. Manufacturers design these compact units for simple, low-power applications where physical space is limited. They typically feature basic Volts-per-Hertz (V/Hz) control and minimal input/output (I/O) capabilities. Many micro drives offer single-phase to three-phase power conversion. This makes them highly practical for small commercial spaces lacking three-phase utility power. Ideal use cases include simple conveyors, small exhaust fans, and basic packaging machinery. Their limitations include a lack of advanced communication protocols, lower overload capacities, and minimal harmonic mitigation built into the chassis.
The standard industrial tier forms the backbone of most manufacturing and HVAC operations. These units include robust feature sets designed for continuous, daily operation in demanding environments. You will typically find built-in PID controllers, standard NEMA 1 enclosures, and basic communication protocols like Modbus RTU included out of the box. Standard industrial drives handle standard centrifugal pumps, large ventilation fans, and moderate-torque manufacturing equipment. They offer better thermal management, larger internal heat sinks, and more extensive programmable logic than micro drives. This tier represents the most common procurement category for facility upgrades.
Heavy industrial applications require high-capacity or medium-voltage drives. This tier requires a significant capital investment. These units rarely come off the shelf. Manufacturers custom-engineer them for specific facility requirements and load profiles. At this scale, drives require advanced harmonic filters, specialized liquid or forced-air cooling systems, and heavy-duty freestanding enclosures. They control massive assets like municipal water pumps, mining crushers, and large-scale extruders. The engineering complexity at this level heavily influences the final hardware expense, as each unit is essentially a custom-built power management system.
Drive Category | Typical Power Range | Primary Control Method | Ideal Applications | Relative Expense Tier |
|---|---|---|---|---|
Micro Drives | Fractional to 5 HP | Basic V/Hz | Small conveyors, basic fans | Entry-Level |
Standard Industrial | 10 HP to 100 HP | V/Hz, Sensorless Vector | HVAC fans, centrifugal pumps | Mid-Range |
High-Capacity | 150 HP and above | Closed-Loop Vector, AFE | Mining crushers, extruders | Premium / Custom |
A bare-bones drive and a fully loaded drive with the same horsepower rating carry vastly different expenses. Specific engineering requirements drive these variations. Evaluating these seven dimensions ensures you only pay for the features your application actually needs, preventing bloated project budgets.
While horsepower or kilowatt ratings provide a general sizing guideline, continuous amp rating dictates the true baseline expense. You must size a variable frequency drive based on the motor's Full Load Amps (FLA). Furthermore, the voltage class heavily impacts internal component selection. A 480V drive requires more robust insulated-gate bipolar transistors (IGBTs) and larger internal capacitors than a 240V drive. Higher voltage classes inherently require more expensive internal architecture to safely manage the electrical load and prevent catastrophic component failure during voltage spikes.

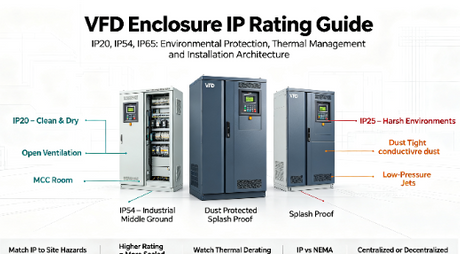

The physical environment surrounding the drive dictates the required enclosure rating. Standard NEMA 1 (IP20) enclosures work perfectly for clean, climate-controlled indoor environments like dedicated electrical rooms. However, harsh environments demand upgraded protection. Moving to a NEMA 12 (dust-tight) or NEMA 4X (washdown, corrosive-resistant) enclosure significantly increases the hardware expense. Upgraded enclosures require specialized thermal management. Since they cannot use standard vented cooling fans, manufacturers must utilize oversized external heatsinks or advanced conformal coating on internal circuit boards to prevent overheating while maintaining a sealed environment.
The mathematical method the drive uses to control the motor impacts the processing power required. Basic Volts-per-Hertz (V/Hz) control maintains a strict voltage-to-frequency ratio. It delivers reliable performance for simple centrifugal loads like fans and requires minimal processing power. Sensorless Vector control requires faster microprocessors to build a mathematical model of the motor in real-time. It provides tighter speed regulation and higher starting torque. Closed-Loop Flux Vector control requires encoder feedback cards and premium processing power. It delivers absolute precision for demanding applications like hoists and cranes. Higher precision requires more expensive internal hardware and optional feedback cards.
Drives draw current in non-linear pulses, which creates harmonic distortion on your facility's electrical grid. Managing this power quality is a major engineering factor. Basic drives might include a simple DC link choke. Meeting strict IEEE 519 harmonic standards requires advanced solutions. You may need to add passive harmonic filters to the input side. In highly sensitive environments, you might require an Active Front End (AFE) drive. AFE drives use a second set of IGBTs to actively cancel out harmonic distortion before it reaches the grid. This advanced technology represents a premium hardware tier and significantly alters the procurement budget.
Modern industrial facilities rely on interconnected control systems. Basic drives usually include standard Modbus RTU over RS-485 at no extra charge. Integrating the drive into a modern PLC network requires premium communication modules. Option cards for EtherNet/IP, PROFINET, or DeviceNet add to the baseline expense. These modules allow for high-speed data transfer, remote diagnostics, and seamless integration into centralized SCADA systems. If your facility requires advanced network integration, you must account for the expense of these specific communication option cards.

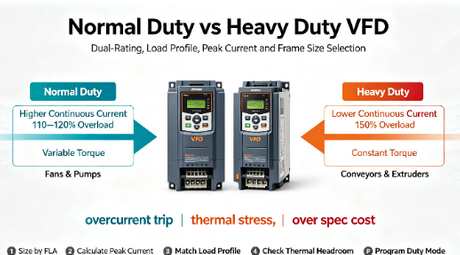

Applications demand different levels of temporary extra power during startup or sudden load changes. Manufacturers rate drives for either Normal Duty or Heavy Duty operation. Normal Duty drives typically provide a 110% overload capacity for one minute. This suits variable torque loads like standard centrifugal pumps. Heavy Duty drives provide a 150% overload capacity for one minute. This is mandatory for constant torque loads like conveyors, crushers, or positive displacement pumps. Sizing for Heavy Duty requires selecting a physically larger drive to handle the increased thermal stress, which alters the baseline expense.
The manufacturer's brand reputation and support network play a crucial role in hardware evaluation. Tier-1 manufacturers command a premium. This premium funds extensive research and development, resulting in highly mature firmware and reliable hardware. Furthermore, premium brands offer extensive local support networks, robust warranty terms, and guaranteed replacement parts availability. Budget brands offer lower upfront expenses but may lack localized technical support or rapid replacement options during an emergency breakdown. You must weigh the initial savings against the potential expense of extended downtime.
Evaluating the true expense of motor control requires looking past the drive itself. The surrounding infrastructure and installation requirements frequently equal or exceed the base hardware investment. Ignoring these implementation realities leads to blown project budgets and delayed commissioning schedules.
Mounting the drive and pulling wire is only the first step. You must hire certified electricians to ensure compliance with local electrical codes. Following physical installation, a control technician must commission the drive. Commissioning involves programming dozens of parameters, tuning PID loops, and integrating the unit with existing control panels. Complex applications require extensive testing to ensure the drive responds correctly to external sensor inputs. Specialized labor rates for certified integration technicians form a significant part of the project budget.
Physical Mounting: Securing the drive to a backpanel or wall, ensuring proper clearance for airflow and heat dissipation.
Conduit and Wiring: Routing input power, output motor leads, and low-voltage control wiring through separate conduits to prevent signal interference.
Parameter Configuration: Entering motor nameplate data, setting acceleration/deceleration ramps, and configuring protective fault limits.
Network Integration: Assigning IP addresses, mapping data registers to the facility PLC, and verifying communication integrity.
Load Testing: Running the motor under actual process conditions to verify current draw, thermal stability, and speed regulation.
Drives generate electrical noise and voltage spikes that can damage equipment. Protecting your system requires peripheral hardware. Line reactors sit between the utility power and the drive. They protect the drive from transient voltage spikes and reduce nuisance tripping caused by grid fluctuations. Load reactors or dV/dt filters sit between the drive and the motor. They slow down the rapid voltage rise time generated by the drive's switching frequencies. This protects the motor's internal insulation from premature breakdown. These protective components are critical, non-negotiable additions for reliable operation.
Standard building wire is insufficient for connecting a drive to a motor. You must use specialized VFD-rated cable. This cable features heavy shielding and symmetrical ground wires to contain electromagnetic interference (EMI). Without proper shielding, EMI can disrupt nearby sensitive electronics and communication networks. Additionally, drives induce common mode voltage on the motor shaft. This voltage discharges through the motor bearings, causing pitting and fluting. Installing shaft grounding rings safely diverts this voltage away from the bearings. Both specialized cable and grounding rings add to the implementation expense.
Drives generate heat. A typical unit rejects about 3% to 5% of its power rating as pure heat into the surrounding environment. Installing multiple drives in a single Motor Control Center (MCC) room drastically alters the thermal load of the space. You may need to upgrade the room's HVAC system to prevent the drives from overheating and faulting. For standalone panel installations, you might need to add supplemental cooling fans or panel-mounted air conditioners. Facility modifications to manage this rejected heat must be factored into the overall project scope.

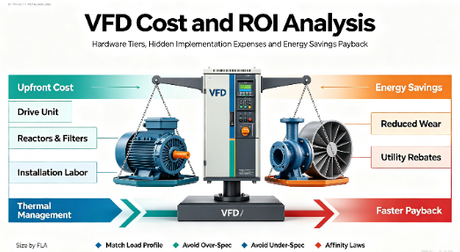

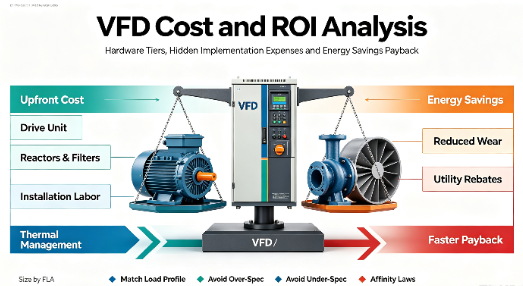

Despite the initial hardware and implementation expenses, adding variable speed control to a fixed-speed system is one of the most financially sound facility upgrades available. The return on investment is highly predictable and often rapid, particularly for fluid handling systems.
The primary financial benefit applies to variable torque loads, specifically centrifugal pumps and fans. The relationship between motor speed and energy consumption follows the Affinity Laws. Power consumption is proportional to the cube of the motor speed. This creates a non-linear savings curve. If you reduce the motor speed by just 20%, the energy consumption drops by nearly 50%. Running a motor at 80% speed instead of using mechanical dampers or throttling valves yields massive reductions in utility power draw.
Consider a large ventilation fan running continuously. Without speed control, the motor runs at 100% speed, and airflow is restricted by mechanical dampers. By removing the dampers and using a drive to reduce the motor speed to match the actual airflow demand, the energy consumption plummets. Facilities routinely see their annual operating expenses for a single large motor drop by 60% to 70%. These compounded monthly savings quickly offset the initial hardware and installation expenses, turning a capital expense into a net-positive cash flow generator.
Starting a motor across-the-line draws a massive inrush current, often six times the motor's full load amperage. This causes severe mechanical shock to belts, pulleys, and couplings. In fluid systems, it causes water hammer, which damages pipes and valves. A drive acts as a soft starter. It gradually ramps up the voltage and frequency, providing a smooth, controlled acceleration. This eliminates mechanical shock, extends the lifespan of driven equipment, and significantly reduces ongoing maintenance expenses and unplanned downtime.
Local power companies want to reduce the overall strain on the electrical grid. Many utility providers offer substantial cash rebates for facilities that upgrade fixed-speed motors with variable speed control. These efficiency incentives can cover a significant portion of the initial hardware expense. Researching and applying for local utility rebates effectively lowers the net investment required to modernize your motor control infrastructure. You should engage with your utility provider during the planning phase to ensure your selected hardware qualifies for these prescriptive or custom rebate programs.
Selecting the correct hardware requires a disciplined evaluation framework. You must match the drive's capabilities to the specific demands of the driven load. Guesswork leads to system failures or wasted capital.
Begin by analyzing the load type. Is it a variable torque load (fans, centrifugal pumps) or a constant torque load (conveyors, positive displacement pumps, extruders)? Variable torque loads require Normal Duty sizing and basic V/Hz control. Constant torque loads require Heavy Duty sizing and often benefit from Vector control for better low-speed torque management. Next, analyze the duty cycle. A drive provides the best financial return when the required flow rates or speeds vary significantly throughout the day. If a motor must run at 100% speed 24/7, a drive offers minimal energy savings.
Engineers sometimes specify premium features out of an abundance of caution. Buying a heavy-duty, closed-loop vector drive with premium communication modules for a simple rooftop exhaust fan wastes capital. The fan does not require absolute speed precision, nor does it require heavy overload capacity. Over-specifying inflates the initial budget without delivering any additional operational value. Stick to the features that directly solve the application's requirements. Review the mechanical demands of the load and strip away unnecessary software features or enclosure upgrades that do not match the installation environment.
Conversely, under-specifying hardware to save money upfront guarantees long-term failure. Installing a standard NEMA 1 drive in a dusty manufacturing environment will lead to clogged heatsinks and thermal faults. Sizing a drive for Normal Duty on a heavy conveyor will result in overcurrent trips during startup. Ignoring the need for line reactors will lead to blown internal components from utility voltage spikes. Under-specifying leads to unplanned downtime, premature hardware failure, and replacement expenses that dwarf the initial savings. Always prioritize environmental protection and proper amp sizing over baseline hardware savings.
Evaluating motor control hardware requires a comprehensive approach. The true expense encompasses the base unit, required protective peripherals, and professional installation labor. However, these upfront investments are rapidly offset by drastic reductions in energy consumption and mechanical wear.
To move forward with your motor control upgrade, take the following actionable steps:
Conduct a comprehensive motor audit across your facility to identify fixed-speed pumps and fans that operate with mechanical throttling.
Measure the baseline power consumption and operating hours of these target motors to establish current energy usage.
Calculate potential energy savings using the Affinity Laws based on the required varying flow rates.
Consult with a certified systems integrator to quote a complete, installed system that includes necessary peripheral protection and proper enclosure ratings.
A: Check the motor's nameplate. You need an AC induction motor rated for inverter duty. Inverter-duty motors have upgraded insulation to withstand the voltage spikes generated by the drive's switching frequencies. Standard older motors may require load reactors to prevent insulation failure.
A: For variable torque applications like centrifugal pumps and HVAC fans, the payback period is highly favorable. Based on energy savings alone, facilities typically see a complete return on investment within 6 to 24 months, depending on local utility rates and operating hours.
A: Yes, a single drive can control multiple motors simultaneously, provided they operate at the same speed. You must size the drive so its continuous amp rating exceeds the sum of the Full Load Amps of all connected motors combined. Each motor requires external overload protection.
A: A line reactor acts as a buffer between the utility grid and the drive. It protects the drive's sensitive internal components from transient voltage spikes and surges on the power line. It also helps reduce the harmonic distortion that the drive pushes back onto the facility's electrical grid.
A: It saves energy by altering the frequency and voltage sent to the motor, allowing it to run at lower speeds. For pumps and fans, the Affinity Laws dictate that power consumption drops at the cube of the speed reduction. Running at lower speeds drastically cuts electrical draw.
