Did you know permanent magnet motors power electric vehicles and household appliances? These motors are vital in modern technology. In this post, you'll learn about their types, applications, and advantages."

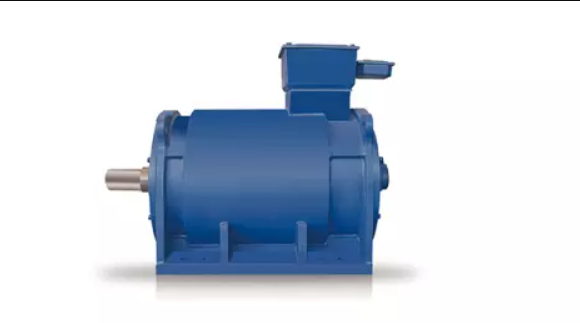

Permanent magnet motors come in several types, each designed for specific uses and performance needs. They all share one key feature: a rotor made with permanent magnets. Here’s a closer look at the main types:
This is the most common type. The rotor has permanent magnets like neodymium iron boron or samarium cobalt. These magnets create a steady magnetic field that helps the motor run efficiently. PMSMs deliver high power and torque, respond quickly, and can operate across a wide range of speeds. You’ll find them in electric vehicles, industrial machines, home appliances like air conditioners, and even wind turbines.
Structurally, BLDC motors are similar to PMSMs because they also use permanent magnets on the rotor. The main difference lies in how they are controlled and the shape of their back electromotive force (EMF) waveform. BLDCs are popular in power tools, drones, computer fans, vacuum cleaners, and electric bikes. They offer reliable performance, low maintenance, and good speed control.
These motors have permanent magnets on the rotor and move in precise steps. They work with stator coils that create magnetic fields to move the rotor incrementally. This makes them ideal for applications needing exact positioning and slow speeds, such as printers, scanners, CNC machines, and robotic arms.
Servo motors with permanent magnet rotors are widely used in automation and robotics. They often use rare-earth magnets like neodymium-iron-boron embedded in or mounted on the rotor surface. These motors provide precise control of position, speed, and torque, making them perfect for high-performance servo systems.
This motor type replaces the traditional wound field in DC motors with permanent magnets. It simplifies the design by removing excitation windings, leading to a lighter, smaller, and more efficient motor. It retains the familiar characteristics of DC motors, such as good starting torque and speed regulation, but with improved reliability and efficiency.
Choosing the right permanent magnet motor depends on the application’s speed, torque, and control requirements, as each type offers unique advantages.
Permanent magnet motors power many of today’s key technologies. Their efficiency, size, and performance make them the choice for various industries. Let’s explore some main applications:
Electric vehicles (EVs) rely heavily on permanent magnet motors, especially Permanent Magnet Synchronous Motors (PMSM) and Brushless DC Motors (BLDC). These motors offer high efficiency and power density, which help extend driving range and improve performance. For example, Tesla uses permanent magnet motors in some of its models to balance cost, efficiency, and power. The fixed magnetic field from the rotor magnets eliminates the need for extra excitation power, saving energy and reducing heat.
In factories and plants, permanent magnet motors drive conveyors, pumps, compressors, and machine tools. Their precise speed control and high torque make them ideal for automation and servo systems. Permanent magnet synchronous servo motors provide accurate positioning for robotics and CNC machines. Their compact size also helps save space in crowded industrial environments.
Many home appliances use permanent magnet motors to improve energy efficiency and reduce noise. Examples include washing machines, air conditioners, vacuum cleaners, and refrigerators. Brushless DC motors are common here, offering long life and quiet operation. These motors help appliances meet stricter energy standards while delivering reliable performance.
Robots require motors that offer precise control, fast response, and high torque in a small package. Permanent magnet motors fit perfectly. They power robotic arms, drones, and automated guided vehicles (AGVs). The high torque-to-weight ratio lets robots move smoothly and accurately. Permanent magnet synchronous servo motors are especially popular in high-end robotic systems for their excellent dynamic response.
In selecting a permanent magnet motor, consider the application's specific speed, torque, and control needs to ensure optimal performance and efficiency.
Permanent magnet motors offer several key benefits that make them popular across various industries. Their unique design, especially the use of permanent magnets in the rotor, contributes to these advantages.
Permanent magnet motors are known for their excellent efficiency. Since the rotor magnets create a constant magnetic field, they don’t need extra power for excitation. This reduces energy losses compared to motors with wound rotors. The result is less heat generation and better energy use, which is especially important in applications like electric vehicles and industrial automation where efficiency translates to cost savings and longer operation times.
Using permanent magnets allows these motors to be smaller and lighter than traditional motors. Without the need for bulky windings or excitation systems on the rotor, the motor’s overall size shrinks. This compactness is a big advantage in applications where space and weight are limited, such as drones, robotics, and portable tools. A smaller motor also means easier installation and integration into complex systems.
Permanent magnet motors deliver strong torque and quick response. The fixed magnetic field from the rotor magnets ensures consistent performance across a wide speed range. They also provide precise speed and position control, which is crucial for servo systems, CNC machines, and robotics. This improved control results in smoother operation, less vibration, and better overall reliability.
Because they operate more efficiently and produce less heat, permanent magnet motors consume less energy. This reduction in energy use not only lowers operating costs but also helps meet stricter environmental regulations. For instance, household appliances with permanent magnet motors often achieve higher energy star ratings, making them more eco-friendly. In industrial settings, reduced energy consumption contributes to sustainable practices and reduces the carbon footprint.
When selecting a permanent magnet motor, consider the specific efficiency, size, and control needs of your application to maximize these advantages.
Permanent magnet motors rely on strong, durable magnets in their rotors to generate a constant magnetic field. The choice of magnet material affects the motor's efficiency, size, cost, and operating temperature range. Here are the main types of magnets used in these motors:
NdFeB magnets are the strongest permanent magnets available. They provide high magnetic strength, which allows motors to deliver more power in a smaller size. This makes them ideal for electric vehicles, drones, and high-performance industrial machines. However, NdFeB magnets can corrode easily, so they usually have protective coatings like nickel or epoxy. They also have a Curie temperature around 320°C, meaning they can work well in moderately high temperatures but may lose magnetism if overheated. Despite their strength, NdFeB magnets are costly due to the rare earth elements involved and the complex manufacturing process.
SmCo magnets offer slightly less magnetic strength than NdFeB but excel in temperature stability and corrosion resistance. They can operate at temperatures above 700°C without losing magnetism, making them suitable for motors exposed to high heat or harsh environments. SmCo magnets also resist demagnetization better than NdFeB. However, they are more expensive because they contain higher amounts of rare earth metals. These magnets are often used in aerospace, military, and specialized industrial applications where performance under extreme conditions is critical.
Alnico magnets are made from aluminum, nickel, and cobalt, and they do not contain rare earth materials. They have excellent temperature stability, with Curie temperatures near 800°C, and good corrosion resistance. But their magnetic strength is lower than NdFeB and SmCo magnets. Alnico magnets are less common in modern high-performance motors but still find use in sensors, electric generators, and some consumer products where cost and temperature tolerance matter more than maximum power density.
Also called ferrite magnets, ceramic magnets are made from iron oxide and strontium carbonate. They are the most affordable option and resist corrosion well. While their magnetic strength is weaker than NdFeB, SmCo, or Alnico, ceramic magnets perform adequately in many household appliances, automotive sensors, and industrial equipment. Their Curie temperature is about 450°C, so they handle moderate heat but are less suitable for very high-temperature applications.
Selecting the right magnet material depends on balancing magnetic strength, operating temperature, cost, and environmental factors for your motor’s specific application.
Permanent magnet motors rely heavily on rare earth materials, which raises several environmental and supply issues. These challenges affect production costs, availability, and the sustainability of motor manufacturing.
Rare earth elements like neodymium and samarium are essential for producing strong permanent magnets used in motor rotors. Mining and processing these materials generate waste with elevated radioactivity, known as TENORM (Technologically Enhanced Naturally Occurring Radioactive Materials). This waste poses environmental and health risks if not managed properly.
China dominates rare earth production and has historically imposed export restrictions. For example, in 2010, China limited shipments to Japan, citing environmental protection and resource conservation. Although export quotas were lifted in 2015, the global supply remains vulnerable to geopolitical tensions and regulatory changes.
Demand for rare earths often exceeds supply. In 2017, global neodymium demand outstripped production by about 10%. This imbalance drives price volatility and can disrupt motor manufacturing schedules.
The scarcity and high cost of rare earth materials increase the expense of permanent magnet motors. NdFeB magnets, the strongest type, require complex manufacturing and protective coatings to prevent corrosion. These factors add to production costs.
Manufacturers must balance magnet performance with cost and availability. SmCo magnets offer better temperature stability but cost more due to higher rare earth content. Alnico and ceramic magnets cost less but provide lower magnetic strength, limiting their use in high-performance motors.
Supply constraints can delay production and lead to higher prices for end products like electric vehicles and industrial equipment. Companies may face challenges securing a steady magnet supply, impacting their competitiveness.
Research into alternative magnetic materials aims to reduce reliance on rare earths. Emerging options include iron-cobalt-molybdenum alloys, nanostructured cobalt-platinum, and iron-nickel alloys. These materials promise lower cost, better mechanical properties, and less environmental impact.
Recycling rare earth magnets from old motors and electronics is another strategy to ease supply pressures. Improving recycling technologies can recover valuable materials and reduce mining demand.
Some motor designs combine permanent magnets with reluctance motor principles to reduce magnet volume without sacrificing performance. This hybrid approach helps lower rare earth dependency.
In the long term, diversifying supply chains and developing sustainable mining practices are essential. Manufacturers, governments, and researchers must collaborate to ensure a steady, environmentally responsible supply of rare earth materials.
To mitigate risks, B2B buyers should evaluate supplier stability and consider motors using alternative magnet materials or hybrid designs to balance cost, performance, and supply security.
The search for new magnetic materials is a hot topic in permanent magnet motor research. Engineers and scientists aim to find magnets that are strong, cost-effective, and less dependent on rare earth elements. Some promising materials include iron-cobalt-molybdenum alloys, nanostructured cobalt-platinum, and meteoric-type iron-nickel alloys. These materials could offer good magnetic strength and better mechanical properties while reducing environmental impact. Developing such alternatives may help ease supply chain issues and lower production costs.
Permanent magnet motors continue evolving through advanced design and control technologies. Innovations like interior permanent magnet (IPM) motors improve the rotor structure by embedding magnets inside, which boosts structural integrity and reduces unwanted effects like back electromotive force (EMF). Hybrid designs combine permanent magnets with reluctance motor features to cut down on magnet volume without losing performance. On the control side, smarter electronic controllers enable precise speed and torque regulation, improving efficiency and dynamic response. These advances make motors more compact, efficient, and adaptable to various applications.
Demand for permanent magnet motors is rising steadily, driven by sectors like electric vehicles, robotics, and renewable energy. Electric vehicle manufacturers favor these motors for their high efficiency and power density, which help extend driving range and reduce battery size. Industrial automation and household appliance markets also boost growth due to the motors’ compact size and energy savings. As the push for greener technologies grows, permanent magnet motors are expected to capture an even larger share of the motor market. However, supply constraints on rare earth materials may influence pricing and availability in the near term.
For B2B buyers, staying informed about emerging magnetic materials and innovative motor designs can help select future-proof solutions that balance cost, performance, and supply security.
Permanent magnet motors, featuring a rotor with permanent magnets, are vital in various applications due to their efficiency, compact size, and improved performance. They are widely used in electric vehicles, industrial machines, and household appliances. As the demand for these motors increases, Empowering Industries with DC Electric Motors Solutions-LAEG offers innovative solutions that balance cost, performance, and supply security. Their products provide exceptional value by integrating advanced materials and designs, ensuring efficiency and reliability across diverse industries.
A: Permanent magnet motors are electric motors that use permanent magnets in the rotor to create a constant magnetic field, enhancing efficiency and performance.
A: Permanent magnet motors work by using the magnetic field from the rotor's permanent magnets to interact with the stator's electromagnetic field, producing torque and motion.
A: Permanent magnet motors are used in electric vehicles due to their high efficiency, power density, and ability to extend driving range while reducing battery size.
A: Benefits include high efficiency, compact size, strong torque, quick response, and reduced energy consumption, making them ideal for various applications.
A: Permanent magnet motors offer better efficiency, smaller size, and improved performance characteristics compared to traditional motors with wound rotors.
