A VFD can be correctly sized and properly programmed yet still fail prematurely because of its installation environment. Conductive dust, moisture, chemical exposure, and accidental contact can damage sensitive electronics and cause costly production downtime.
Choosing the correct VFD enclosure rating requires balancing environmental protection with ventilation and heat dissipation. While insufficient protection exposes the drive to contamination, an over-specified enclosure may increase costs, trap heat, and complicate installation.
In this article, you will learn the differences between IP20, IP54, and IP65 VFD enclosure ratings, including their protection levels and typical applications. We will also explain how to match an enclosure to actual operating conditions while maintaining reliable cooling and long-term drive performance.
IP20: Strictly for clean, dry, climate-controlled environments (like MCC rooms or sealed cabinets); offers zero protection against liquids and is vulnerable to airborne dust.
IP54: The industrial middle-ground; protects against settling dust and splashing water, ideal for general manufacturing floors and HVAC applications.
IP65: Built for harsh environments; completely dust-tight and resistant to low-pressure water jets, mandatory for washdown areas or decentralized machine mounting.
Table of Contents
The IEC 60529 standard defines Ingress Protection (IP) ratings for electrical equipment. This system provides a standardized method to evaluate how well an enclosure blocks foreign objects and moisture. For sensitive power electronics, understanding these digits prevents critical application failures. You cannot guess or approximate these ratings when dealing with high-voltage equipment.
The rating system consists of two primary numbers. Each digit represents a specific type of environmental resistance. Higher numbers indicate greater levels of physical protection. When you evaluate a VFD for a specific application, you must look at both digits independently to understand the full scope of protection.
The first digit measures protection against solid objects and particulate matter. It ranges from 0 to 6. For industrial drives, this scale dictates how well the unit repels dust and debris. Airborne particulates pose a severe threat to circuit boards. Conductive dust, like carbon or metal shavings, bridges electrical traces. This causes immediate short circuits across the Insulated-Gate Bipolar Transistors (IGBTs). Non-conductive dust acts as an insulator. It coats heat-generating components, traps thermal energy, and causes the drive to trip on over-temperature faults.
First Digit | Protection Level | Practical Implication for Drives |
|---|---|---|
2 | Objects > 12.5mm | Protects against human fingers. Zero dust protection. |
4 | Objects > 1mm | Blocks wires and screws. Vulnerable to fine dust. |
5 | Dust-Protected | Allows minor dust ingress that won't disrupt operation. |
6 | Dust-Tight | Vacuum sealed. Zero particulate ingress allowed. |
The second digit measures protection against water ingress. It ranges from 0 to 9. Water exposure causes immediate short circuits and accelerates long-term galvanic corrosion on copper traces. Even a small amount of condensation can destroy a control board if voltage is applied while the board is wet.
Second Digit | Protection Level | Practical Implication for Drives |
|---|---|---|
0 | None | Fails immediately upon liquid contact. |
4 | Splashing Water | Survives incidental splashes from any direction. |
5 | Low-Pressure Jets | Survives standard hose washdowns. |
6 | High-Pressure Jets | Survives heavy seas or powerful water jets. |
An IP20 rating represents the baseline protection level for a standard drive. These units are designed exclusively for controlled indoor environments. They prioritize maximum airflow and natural heat dissipation over environmental sealing. When you look at an IP20 unit, you will see open ventilation louvers and exposed heatsink fins. You can often see the internal capacitors and circuit boards through the plastic housing.
IP20 enclosures protect personnel from accidental contact with live electrical components. The housing blocks objects larger than 12.5mm, ensuring a technician cannot accidentally touch the DC bus terminals with their fingers. However, the enclosure offers absolutely zero protection against moisture, dripping water, or high humidity. Airborne dust passes freely through the chassis, settling directly on the sensitive electronics.
You must install IP20 units in highly controlled spaces. Success depends entirely on the surrounding ambient conditions. If the environment changes, the drive will fail.
Centralized Motor Control Center (MCC) rooms with dedicated HVAC systems.
Inside secondary IP-rated electrical panels (such as NEMA 12 or NEMA 4 cabinets).
Cleanrooms with active HEPA air filtration.
IT-grade environments and climate-controlled server rooms.
Deploying an IP20 drive on an open factory floor guarantees eventual failure. Accidental exposure to facility washdowns will destroy the unit instantly. High humidity leads to internal condensation, causing flashovers on the control board during startup. Even standard warehouse dust will eventually blanket the internal heatsinks, causing the cooling fans to work harder until the unit overheats.
To mitigate these risks, you must house IP20 drives inside a secondary enclosure if they leave the MCC room. If placed in a general manufacturing area, use a sealed NEMA 12 cabinet. This approach requires calculated panel cooling. Every drive generates heat—typically 3% to 5% of its total power rating in watts loss. You must install cabinet fans, heat exchangers, or active air conditioners to prevent thermal faults. The secondary enclosure traps this heat, requiring active thermal management to maintain optimal operating temperatures.
The IP54 rating serves as the industrial middle-ground. It provides sufficient protection for general manufacturing environments without the extreme thermal restrictions of fully sealed units. These drives bridge the gap between fragile IP20 units and heavy-duty IP65 units, offering a practical solution for facilities with moderate contamination.
An IP54 enclosure is dust-protected and splash-proof. It is not completely dust-tight. Small amounts of airborne powder may enter the housing, but the internal design ensures this dust will not settle on critical components or disrupt operation. The enclosure withstands splashing water from any direction. It easily handles non-corrosive, non-conductive environmental stressors like dripping condensation from overhead pipes or incidental splashes from nearby machinery.
These units thrive in standard industrial settings where direct liquid spray is absent but the air is not perfectly clean.
General manufacturing facilities and automotive assembly lines.
Warehouse conveyors and automated material handling systems.
HVAC mechanical rooms, boiler rooms, and indoor pump stations.
Environments with moderate airborne debris like cardboard dust or textile fibers.
A common engineering error involves misunderstanding the term "splash-proof." IP54 is never washdown-ready. The enclosure will fail under direct hose pressure. If a sanitation crew sprays an IP54 drive with a low-pressure hose, water will bypass the seals and short the control board. Furthermore, internal cooling fans can draw in fine dust over long periods. This dust accumulates on internal heatsinks and reduces cooling efficiency over years of operation.
Establish strict facility cleaning protocols to protect these units. Maintenance staff must wipe down IP54 drives with damp cloths. They must never spray them with hoses or pressure washers. Implement a preventative maintenance schedule to monitor internal cooling fans. Listen for bearing whine in the fans, which indicates dust contamination. Replace external air filters on the drive housing regularly to prevent thermal throttling and extend hardware life.
IP65 enclosures are built for harsh, unforgiving environments. They provide a robust physical barrier against severe industrial contaminants, allowing for flexible installation locations directly on the machine frame or in heavy washdown zones.
An IP65 unit is fully sealed and completely dust-tight. A vacuum seal prevents any solid ingress, regardless of how fine the particulate is. The enclosure withstands low-pressure water jets from any direction. This rating allows the drive to survive routine cleaning procedures, heavy particulate exposure, and outdoor weather conditions. The housing is typically constructed from rugged materials like die-cast aluminum, polycarbonate, or stainless steel to withstand physical abuse.
Specify IP65 units when environmental hazards cannot be controlled, mitigated, or avoided.
Food and beverage processing areas requiring daily non-caustic washdowns.
Outdoor installations utilizing proper UV shielding and rain hoods.
Heavy aggregate, mining, and cement processing facilities with extreme dust.
Pulp and paper processing plants with high ambient moisture levels.
Decentralized machine mounting where the drive sits directly on the motor.
Because IP65 enclosures are completely sealed, internal thermal management becomes a significant engineering challenge. Heat dissipation relies entirely on external heatsinks. The lack of internal airflow means temperature swings can cause internal sweating. When a hot drive cools down rapidly during a night shift, the air inside the sealed enclosure contracts, pulling in moisture if the seals are compromised, or simply condensing the existing humidity into water droplets on the circuit board.
You must account for potential derating in high-ambient temperature environments. A sealed drive may not deliver its full rated current if the surrounding air is too hot. For example, a drive rated for 20 amps at 25°C might only safely deliver 15 amps at 40°C. Ensure maintenance teams regularly clear debris from the external heatsink fins, as mud or wet dust will insulate the fins and cause overheating. For outdoor or high-humidity applications, specify drives equipped with internal anti-condensation space heaters or breathable membrane valves (like Gore-Tex vents). These valves equalize internal pressure and allow moisture to escape without compromising the IP rating.
Selecting the right protection level goes beyond matching numbers on a datasheet. You must evaluate several interconnected engineering dimensions to ensure reliable system performance and structural integrity.
Conduct a thorough audit of your facility before specifying equipment. Identify the exact hazards present in the installation area. Differentiate between conductive dust (like graphite, coal, or metal shavings) and non-conductive dust (like sawdust, flour, or plastic resin). Conductive dust requires a strict IP65 rating to prevent immediate short circuits, even if the ambient environment is dry.
Evaluate ambient humidity levels and chemical vapor presence. Document your facility cleaning protocols. If your plant utilizes Clean-in-Place (CIP) procedures with high-pressure, high-temperature water and caustic chemicals, standard IP65 will fail. You will need specialized IP69K enclosures designed specifically for extreme washdown conditions and chemical resistance.
A direct inverse relationship exists between a higher enclosure rating and natural heat dissipation. Open IP20 units cool efficiently because ambient air flows directly over the internal components. Sealed IP65 units trap heat internally, forcing the thermal energy to transfer through the chassis to the external heatsink.
Specifying an IP65 drive often requires oversizing the unit to account for thermal derating. If a 10 HP motor requires a sealed drive in a hot environment, you may need to specify a 15 HP drive to handle the thermal load safely without tripping. This oversizing impacts the overall physical footprint of the installation. Larger drives require more mounting space, heavier brackets, and larger wire bending radii.
An IP rating only measures resistance to dust and water. It does not account for mechanical shock or vibration. Protection against physical impact is measured by the IK rating system. Heavy industrial environments, like mining or lumber mills, often require both high IP and high IK ratings to survive flying debris or accidental impacts from heavy machinery.
Material selection heavily influences enclosure durability. Standard IP65 drives often use polycarbonate or epoxy-coated aluminum. These materials resist water but may degrade when exposed to harsh cleaning chemicals or prolonged UV radiation. If your process involves corrosive chemicals, specify 316 stainless steel enclosures. Stainless steel survives aggressive sanitation chemicals, resists rust, and handles physical impacts on the factory floor far better than plastic.

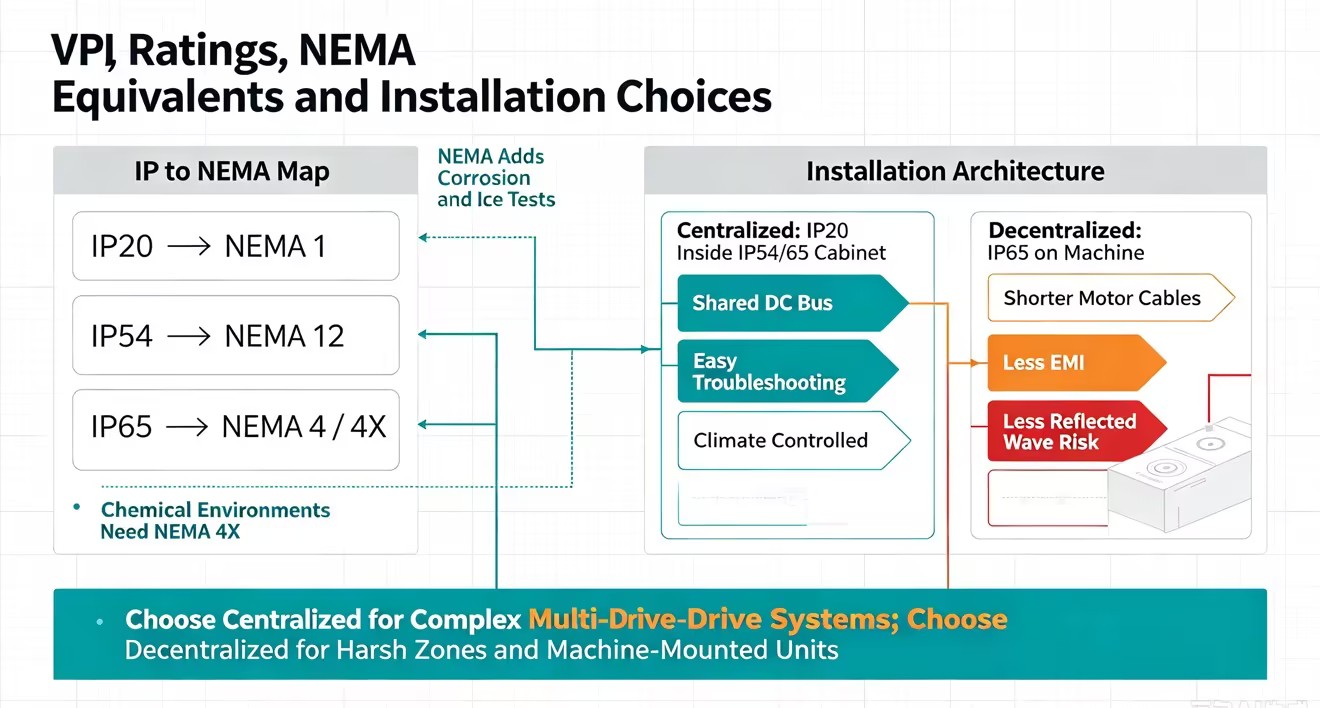

North American facilities often utilize NEMA ratings alongside IP standards. Understanding the conversion helps align procurement specifications and ensures compliance with local electrical codes.
IP Rating | NEMA Equivalent | Key Differences & Additional Protections |
|---|---|---|
IP20 | NEMA 1 | General purpose indoor use. No specific water or dust tests beyond basic finger protection. |
IP54 | NEMA 12 | Adds protection against dripping non-corrosive liquids and settling dust. |
IP65 | NEMA 4 | Adds protection against hose-directed water and external ice formation. |
IP65 (Specialized) | NEMA 4X | Requires strict corrosion resistance testing. Mandatory for chemical and marine environments. |
NEMA ratings include additional tests for corrosion resistance and ice formation that IP ratings ignore. Chemical environments require NEMA 4X, which mandates strict corrosion resistance. Furthermore, industry-specific hygiene mandates dictate enclosure choices. FDA, USDA, and NSF regulations often require specific material finishes, sloped roofs to prevent water pooling, and strict IP65 or higher ratings for food processing zones.
Your chosen enclosure rating directly dictates your installation architecture. You must decide whether to centralize drives in a remote control room or decentralize them directly on the machine frame.
Centralized architectures group multiple IP20 drives inside a large, climate-controlled IP54 or IP65 cabinet located away from the machine. This approach works best for complex, multi-drive systems where environmental hazards are too severe for local mounting.
Centralized control wiring simplifies troubleshooting and PLC integration for maintenance teams.
Shared DC bus configurations become possible, improving energy efficiency across multiple motors by sharing regenerative energy.
Maintenance is isolated away from hazardous factory floor conditions, keeping technicians safe.
Strict climate control inside the main cabinet protects all sensitive electronics simultaneously, extending hardware lifespan.
Decentralized architectures place individual IP65 drives directly on or near the motor. This modular approach suits modern machine designs, expansive conveyor systems, and facilities with limited floor space.
Eliminates long shielded motor cables, drastically reducing installation complexity and copper usage.
Mitigates EMI/RFI issues caused by long cable runs acting as broadcasting antennas.
Reduces reflected wave phenomena (dV/dt spikes), protecting motor bearing insulation from premature failure.
Frees up valuable factory floor space by eliminating massive centralized control cabinets and heavy cable trays.
There is no universally superior enclosure rating. The right choice requires a strict calculation of environmental hazards, thermal realities, and your specific installation architecture. Over-specifying restricts cooling and increases footprint, while under-specifying guarantees hardware failure. Use a simple shortlisting logic: select IP20 for clean rooms or panel mounting, IP54 for general industrial floors, and IP65 for washdown zones or decentralized mounting.
Take the following steps to finalize your engineering design:
Conduct a comprehensive environmental audit of all motor locations, documenting dust types, moisture levels, and chemical presence.
Calculate required motor cable lengths to determine if a centralized or decentralized architecture is structurally necessary to prevent reflected wave damage.
Consult with an application engineer to finalize thermal derating calculations for any sealed enclosures operating in high-ambient temperatures.
Establish standard operating procedures for equipment cleaning based strictly on the ingress limits of your chosen hardware.
A: An IP65 rating roughly aligns with NEMA 4. Both standards ensure the enclosure is dust-tight and watertight against hose-directed water. However, NEMA standards also test for external ice formation. If your environment contains corrosive chemicals, you must specify NEMA 4X, which adds strict corrosion resistance requirements that standard IP65 does not cover.
A: No. An IP20 unit offers zero protection against moisture and cannot block airborne dust. Using it outdoors guarantees immediate failure from rain, humidity, or debris. To use an IP20 drive outdoors, you must install it inside a secondary, climate-controlled NEMA 3R, NEMA 4, or NEMA 4X enclosure.
A: Yes. Higher ratings require sealed enclosures that eliminate internal airflow. Without ventilation slots, heat cannot escape naturally. Sealed units rely entirely on external heatsinks to dissipate thermal energy. This restriction often necessitates larger heatsinks or requires you to derate the drive's output capacity in warm environments.
A: The difference lies in water protection. IP54 protects against splashing water from any direction. IP55 provides a higher level of protection, withstanding low-pressure water jets from a nozzle. Both ratings offer the same level of dust protection, allowing limited, non-harmful dust ingress.
A: No. IP ratings only measure resistance to solid objects, dust, and water. They do not evaluate chemical resistance. Protection against corrosive chemicals depends entirely on the enclosure's material composition. You must specify materials like stainless steel or specialized plastics to survive caustic washdowns or chemical vapors.
A: You cannot physically upgrade the base rating of an existing drive. The chassis design is fixed. To improve protection, you must place the existing drive inside a higher-rated secondary enclosure, such as a NEMA 12 or NEMA 4 cabinet. You must also add appropriate panel cooling to manage trapped heat.
A: No. IP65 means the unit resists low-pressure water jets and is completely dust-tight. It is highly water-resistant but not waterproof. It cannot survive submersion in water. For applications requiring temporary or continuous submersion, you would need IP67 or IP68 ratings, which are extremely rare for standard drives.
