Soft-Switching Architecture: Features a full-bridge LLC+ soft-switching architecture for enhanced power conversion efficiency and reduced energy loss.
Bidirectional Topology: Utilizes a bidirectional Buck-Boost 2-stage topology for highly efficient charging and discharging performance.
Smart Energy Management: Comes with external CT control, allowing for precise and intelligent monitoring of your home's energy flow.
Highly Scalable System: Supports up to 10 units in parallel without the need for an extra parallel kit, making system expansion effortless.
Premium Power Quality: Delivers a clean output with Total Current Harmonic Distortion (THDi) of less than 3%, protecting your sensitive home appliances.
Low Maintenance Design: Equipped with a washable metal dust filter to ensure long-term reliability even in harsh environments.

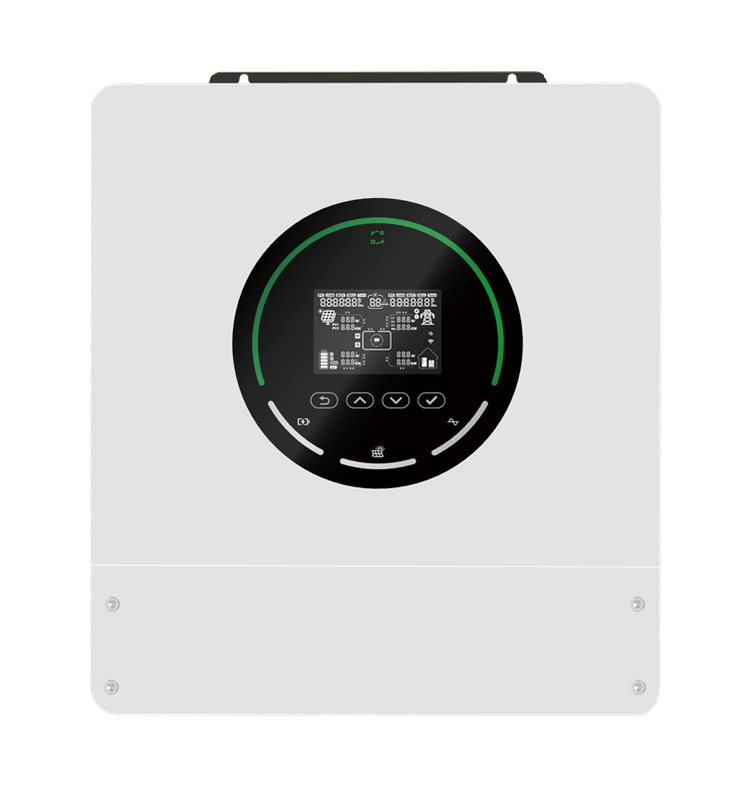

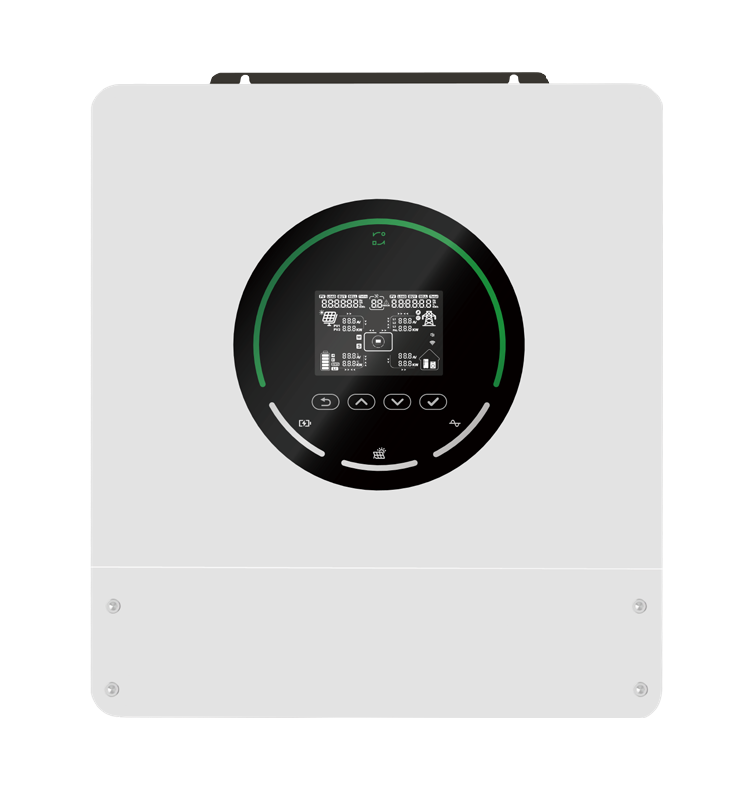

Model | HCB01-SM-0062N |
Battery Input Data | |
Battery Type | Lead-acid or Lithium-ion |
Battery Voltage Range (V) | 40-60 |
Max. Charging Current (A) | 120 |
Max. Discharging Current (A) | 130 |
Rated Battery Voltage(Vdc) | 48 |
PV String Input Data | |
Max. PV Input Power (W) | 9000 |
Max. PV Input Voltage (W) | 500 |
Start-up Voltage (V) | 80 |
MPPT Voltage Range (V) | 80-450 |
Max. Operating PV Input Current (A) | 27 |
Max. Input Short-Circuit Current (A) | 35 |
AC Input(on grid) | |
Max AC Input Power (W) | 11500 |
Max. AC Input Current (A) | 50 |
Rated Grid Voltage | 220/230/240 |
Rated Grid Frequency(Hz) | 50/60 |
Acceptable Range | 170-280Vac(UPS mode) 90-280Vac(for loads) |
Power Factor Adjustment Range | 2 times of rated power, 10s |
AC Output Data (off grid) | |
Peak Power (off-grid)(W) | 0.8 leading to 0.8 lagging |
Rated Output power(W) | 6200 |
Rated Output Current(A) | 28.2 |
Rated Outpout Voltage | 220/230/240 |
Total Current Harmonic Distortion THDi | <3% (of nominal power) |
Transfer Time | 10ms(UPS),20ms(loads) |
Efficiency data | |
Max. Efficiency | 97.80% |
Euro Efficiency | 96.50% |
MPPT Efficiency | >99% |
Equipment Protection | |
Integrated | DC Polarity Reverse Connection Protection,AC Output Overcurrent Protection,Thermal Protection, |
Surge Protection Level | TYPE II(DC), TYPE II(AC) |
Interface | |
Communication Interface | RS485 |
Monitor Mode | WIFI/Bluetooth/4G |
General Data | |
Operating Temperature Range (℃) | -40 to +60℃ , >45℃ Derating |
Permissible Ambient Humidity | 0-100% |
Permissible Altitude | 2000m |
Noise (dB) | <30 |
Ingress Protection(IP) Rating | IP 54 |
Inverter Topology | Non-Isolated |
Over Voltage Category | OVC II(DC), OVC III(AC) |
Cabinet Size (WxHxD mm) | 358*420×123 |
Weight (kg) | 13 |
Type of Cooling | Intelligent Air Cooling |
Warranty | 3Years |
Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
